Featires
> 1/3" 1.3Megapixel CMOS
> 25/30/50/60fps@720P
> High speed, long distance real-time transmission
> HD and standard definition switch.
> OSD Menu, control over coaxial cable
> Day/Night(ICR), AWB, AGC, BLC, 3D-DNR,
> 6mm fixed lens (2.8 mm, 3.6mm, 8mm optional)
> Max. IR LEDs length 20m, Smart IR
> IP66, DC12V
Technical Specifications
|
Model |
CA-HFW2100SP |
CA-HFW2100SN |
|
Camera |
|
Image Sensor |
1/3" 1.3Megapixel CMOS |
|
Effective Pixels |
1280(H)×960(V) |
|
Electronic Shutter |
4/25s~1/45,000s |
4/30~1/54,000s |
|
Video Frame Rate |
1280×720@25 fps；1280×720@30 fps；
1280×720@50 fps；1280×720@60 fps |
|
Synchronization |
Internal |
|
Min. Illumination |
0.01Lux@F1.2(0Lux IR LED on) |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR)/B&W/Color |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens |
|
Focal length |
6mm (2.8 mm, 3.6mm, 8mm optional) |
|
Mount Type |
M12 |
|
General |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 4.2W |
|
Working Environment |
-30°C~+60°C/ Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
Ingress Protection |
IP66 |
|

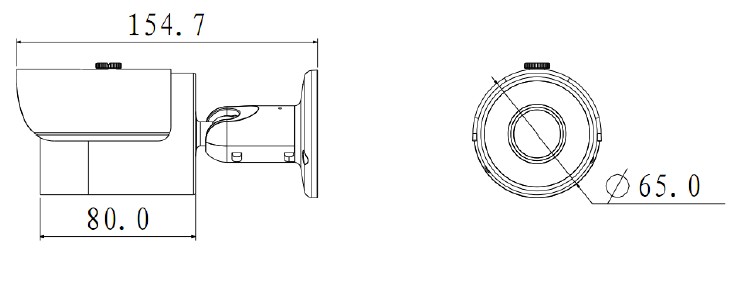

Dimensions(W×D×H) |
Φ65mm x154.7mm |
|
Weight |
380g |
|
Others |
Default: bracket included |  |
