Featires
>1/3" 2Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switch
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR,
>3.6mm fixed lens (2.8 mm, 6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V
Technical Specifications
|
Model |
HAC-HDW2200SP |
HAC-HDW2200SN |
|
Camera |
|
Image Sensor |
1/3" 2Mega CMOS |
|
Effective Pixels |
1920(H)×1080(V) |
|
Electronic Shutter |
1/3s~1/100,000s |
|
Video Frame Rate |
1920×1080@25 fps； 1920×1080@30 fps；1280×720@25 fps； 1280×720@30 fps；1280×720@50 fps；1280×720@60 fps |
|
Synchronization |
Internal |
|
Min. Illumination |
0.05Lux@F1.2(0Lux IR LED on) |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR)/B&W/Color |
|
Noise Reduction |
3D/2D |
|
OSD Menu |
Support |
|
Lens |
|
Focal Length |
3.6mm (2.8mm, 6mm, 8mm optional) |
|
Mount Type |
M12 |
|
General |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 3.5W |
|
Working Environment |
-30°C~+60°C/ Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 300m via 75-3 coaxial cable |
|
Ingress Protection |
IP66 |
|

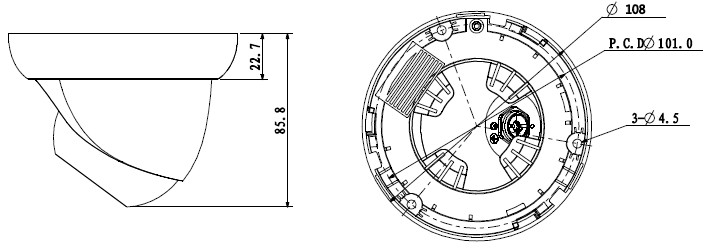

Dimensions |
Φ113.6mm x 85.8mm |
|
Weight |
300g |  |
