Featires
>1/2.9" 1Megapixel CMOS
>25/30fps@720P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC
>3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>DC12V
Technical Specifications
|
Model |
HAC-HDW1100SP |
HAC-HDW1100SN |
|
Camera |
|
Image Sensor |
1/2.9" 1Megapixel CMOS |
|
Effective Pixels |
1280(H) x720(V) |
|
Electronic Shutter |
1/50s~1/100,000s |
1/60s~1/100,000s |
|
Video Frame Rate |
720P@25 fps |
720P@30 fps |
|
Synchronization |
Internal |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON),0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output |
|
Camera Features |
|
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D |
|
Lens |
|
Focal Length |
3.6mm (2.8mm, 6mm, 8mm optional) |
|
Mount Type |
M12 |
|
General |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 2.5W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|

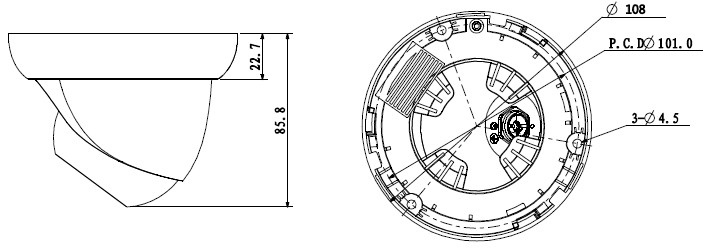

Dimensions |
Φ113.6mm × 85.4mm |
|
Weight |
200g |  |
