Features
>1/3" 1.3Megapixel CMOS
>25/30fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switch
>OSD Menu, control over coaxial cable
>WDR, Day/Night(ICR), 3D-DNR, Auto Iris
>AC24V/DC12V
Technical Specifications
|
Model |
HAC-HF3101P |
HAC-HF3101N |
|
Camera |
|
Image Sensor |
1/3" 1.3Megapixel CMOS |
|
Effective Pixels |
1280(H)×960(V) |
|
Electronic Shutter |
1/1s~1/10,000s |
|
Video Frame Rate |
720P@25 fps; 720P@30 fps; |
|
Synchronization |
Internal |
|
Mini. Illumination |
Color: 0.01Lux@F1.2(AGC ON) ; B/W: 0.001Lux@F1.2(AGC ON) |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
WDR(120dB) |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens |
|
Focal Length |
N/A |
|
Mount Type |
C/CS |
|
Auxiliary Interface |
|
RS485 |
1 |
|
Alarm |
1 channel Out |
|
Audio |
1 channel In |
|
General |
|
Power Supply |
AC24V/ DC12V |
|
Power Consumption |
Max 7W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH <(no condensation) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|

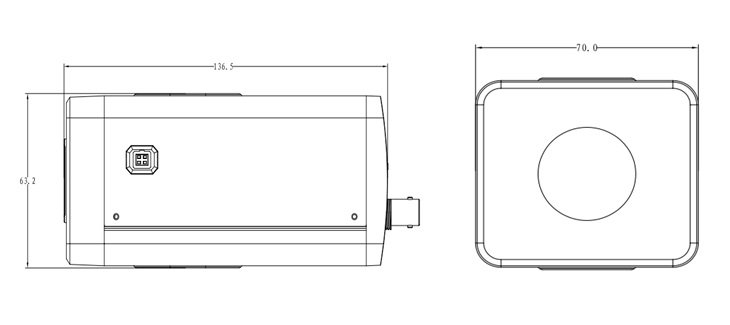

Dimensions(W×D×H) |
70mm × 63.2mm× 136.5mm |
|
Weight |
650g |  |
