Features
>1/2.8" 2.4Megapixel CMOS
>25/30fps@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
>6mm fixed lens (3.6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V
Specifications
|
Model |
HAC-HFW2220SP |
HAC-HFW2220SN |
|
Camera |
|
Image Sensor |
1/2.8" 2.4Megapixel CMOS |
|
Effective Pixels |
1984(H)×1225(V) |
|
Electronic Shutter |
1/3s~1/100,000s |
|
Video Frame Rate |
25/30/50/60fps@720P; 25/30fps@1080P |
|
Synchronization |
Internal |
|
Min. Illumination |
0.05Lux@F1.2(AGC ON), 0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR) / B&W / Color |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens |
|
Focal length |
6mm (3.6mm, 8mm optional) |
|
Mount Type |
M12 |
|
General |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 4.5W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 300m via 75-3 coaxial cable |
|
Ingress Protection |
IP66 |
|

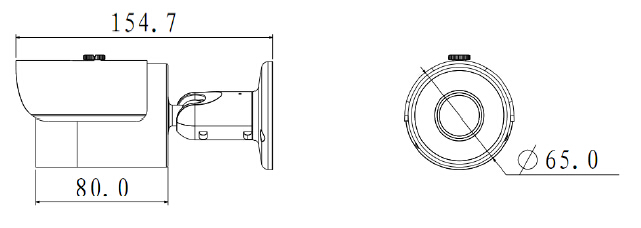

Dimensions(W×D×H) |
Φ65mm×154.7mm |
|
Weight |
0.38kg |
|
Others |
Default: bracket included |
