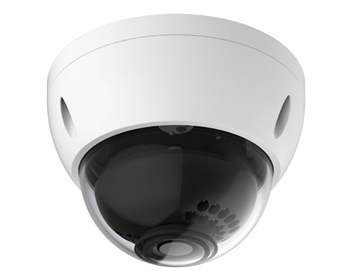

HAC-HDBW2220E
2.4Megapixel 1080P Vandal-proof IR HDCVI Dome Camera


Features
>1/2.8" 2.4Megapixel CMOS
>25/30@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
>3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, IK10, DC12V

Specifications
Model
HAC-HDBW2220EP
HAC-HDBW2220EN
Camera
Image Sensor
1/2.8" 2.4Megapixel CMOS
Effective Pixels
1984(H)×1225(V)
Electronic Shutter
1/3s~1/100,000s
Video Frame Rate
25/30/50/60fps@720P; 25/30fps@1080P
Synchronization
Internal
Mini. Illumination
0.05Lux@F1.2(AGC ON), 0Lux IR on
Video Output
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length
20m, Smart IR
Day/Night
Auto(ICR) / Color / B/W
Noise Reduction
2D/3D
OSD Menu
Support
Lens
Focal Length
3.6mm (2.8mm, 6mm, 8mm optional)
Mount Type
M12
General
Power Supply
DC12V±10%
Power Consumption
Max 4W
Working Environment
-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance
Over 300m via 75-3 coaxial cable
Ingress Protection
IP66 & IK10

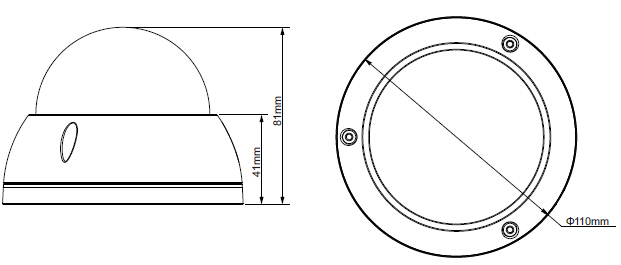

Dimensions(W×D×H)
F110mm×81.0mm
Weight
0.3kg
