Features
>1/3" 1.4Megapixel CMOS
>25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
>2.7~12mm vari-focal lens
>Max. IR LEDs length 30m, Smart IR
>IP66, IK10, DC12V
Specifications
|
Model |
HAC-HDBW2120RP-VF |
HAC-HDBW2120RN-VF |
|
Camera |
|
Image Sensor |
1/3" 1.4Megapixel CMOS |
|
Effective Pixels |
1305(H)×1049(V) |
|
Electronic Shutter |
1/3s~1/100,000s |
|
Video Frame Rate |
25/50fps@720P |
30/60fps@720P |
|
Synchronization |
Internal |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Max. IR LEDs Length |
30m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens |
|
Focal Length |
2.7~12mm |
|
Lens Type |
Manual / Fixed Iris |
|
Mount Type |
Φ14 |
|
General |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 5W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
Ingress Protection |
IP66 & IK10 |
|

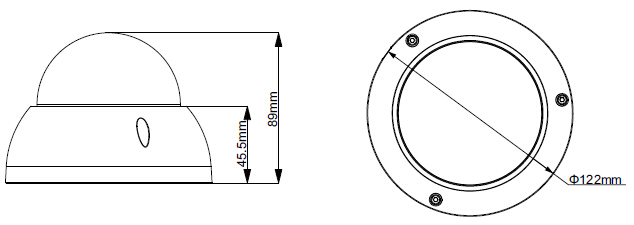

Dimensions |
Φ122mm×89mm |
|
Weight |
0.45kg |  |
