Features
> 1/3" 1.4Megapixel CMOS
> 25/30/50/60fps@720P
> High speed, long distance real-time transmission
> HD and standard definition switchable
> OSD Menu, control over coaxial cable
> Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
> 8mm fixed lens (3.6 mm, 6mm, 12mm, 16mm optional)
> Max. IR LEDs length 50m, Smart IR
> IP66, DC12V
> Default with bracket
Specifications
|
Model |
HAC-HFW2100DP-B |
HAC-HFW2100DN-B |
|
Camera |
|
Image Sensor |
1/3" 1.4Megapixel CMOS |
|
Effective Pixels |
1305(H)×1049(V) |
|
Electronic Shutter |
1/3s~1/100,000s |
|
Video Frame Rate |
25/30/50/60fps@720P |
|
Synchronization |
Internal |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Max. IR LEDs Length |
50m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens |
|
Focal length |
8mm (3.6mm, 6mm,12mm,16mm optional) |
|
Mount Type |
M12 |
|
General |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 7.7W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
Ingress Protection |
IP66 |
|

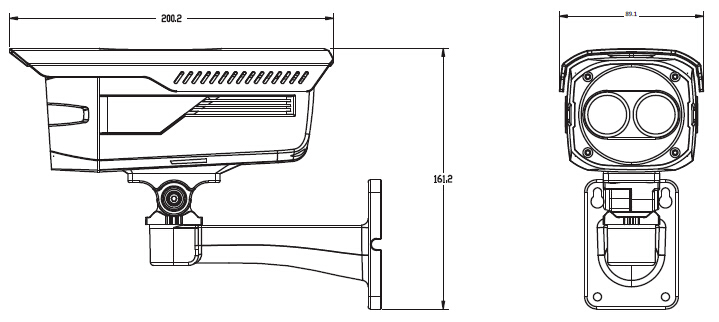

Dimensions(W×D×H) |
200.2mm×89.1mm×161.2mm |
|
Weight |
0.58kg |
|
Others |
Default: bracket included |  |
