Features
>1/2.8" 2.4Megapixel CMOS
>25/30@1080P, 25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and standard definition switchable
>OSD Menu, control over coaxial cable
>DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR, Auto Iris
>AC24V/DC12V
Specifications
|
Model |
HAC-HF3220EP |
HAC-HF3220EN |
|
Camera |
|
Image Sensor |
1/2.8” 2.4Megapixel CMOS |
|
Effective Pixels |
1984(H)×1225(V) |
|
Electronic Shutter |
1/3s~1/100,000s |
|
Video Frame Rate |
25/30/50/60fps@720P; 25/30fps@1080P |
|
Synchronization |
Internal |
|
Mini. Illumination |
0.05Lux@F1.2(AGC ON) |
|
Video Output |
1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Can switch)
Tester out (1-channel BNC HDCVI high definition video output / CVBS standard definition video output) |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens |
|
Lens Type |
Manual/Auto Iris |
|
Mount Type |
C/CS |
|
Auxiliary Interface |
|
RS485 |
1 |
|
Alarm |
1 channel in/out |
|
Audio |
1 channel in |
|
General |
|
Power Supply |
AC24V±10% / DC12V±10% |
|
Power Consumption |
Max 8.3W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 300m via 75-3 coaxial cable |
|

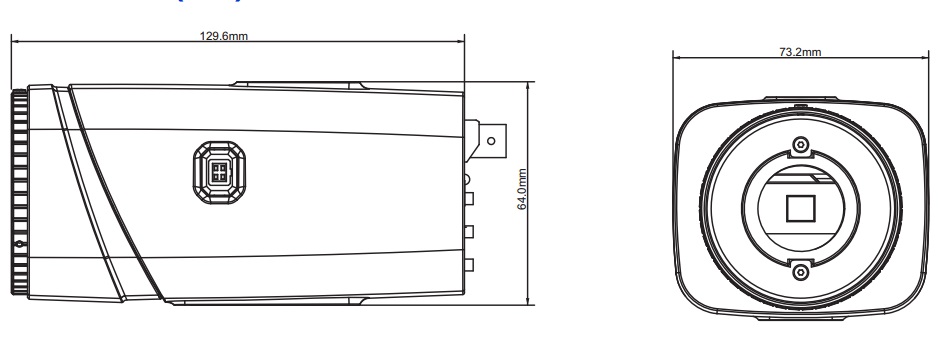

Dimensions(W×D×H) |
129.6mm×64.0mm×73.2mm |
|
Weight |
0.65kg |
|
Material |
Metal |  |
