HAC-HDW2120R-VF
1.4Megapixel 720P IR HDCVI Dome Camera


Features
> 1/3" 1.4Megapixel CMOS
> 25/30/50/60fps@720P
> High speed, long distance real-time transmission
> HD and standard definition switchable
> OSD Menu, control over coaxial cable
> Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
> 2.7~12mm vari-focal lens
> Max. IR LEDs length 30m, Smart IR
> IP66, DC12V

Specifications
Model
HAC-HDW2120RP-VF
HAC-HDW2120RN-VF
Camera
Image Sensor
1/3" 1.4Megapixel CMOS
Effective Pixels
1305(H)×1049(V)
Electronic Shutter
1/3s~1/100,000s
Video Frame Rate
25/50fps@720P
30/60fps@720P
Synchronization
Internal
Min. Illumination
0.01Lux@F1.2(AGC ON), 0Lux IR on
Video Output
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length
30m, Smart IR
Day/Night
Auto(ICR) / Color / B/W
Noise Reduction
2D/3D
OSD Menu
Support
Lens
Focal Length
2.7~12mm
Angle of View
H: 90º~28.7º
Lens Type
Manual / Fixed Iris
Mount Type
Φ14
General
Power Supply
DC12V±10%
Power Consumption
Max 5W
Working Environment
-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance
Over 500m via 75-3 coaxial cable
Ingress Protection
IP66

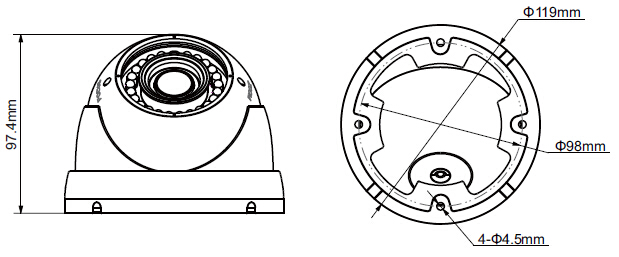

Dimensions
Φ119mm×97.4mm
Weight
0.55kg
