Features
> 1/3" 1.4Megapixel CMOS
> 25/30/50/60fps@720P
> High speed, long distance real-time transmission
> HD and standard definition switchable
> OSD Menu, control over coaxial cable
> Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
> 6mm fixed lens (2.8 mm, 3.6mm, 8mm optional)
> Max. IR LEDs length 20m, Smart IR
> IP66, DC12V
Specifications
|
Model |
HAC-HDW2120SP |
HAC-HDW2120SN |
|
Camera |
|
Image Sensor |
1/3" 1.4Megapixel CMOS |
|
Effective Pixels |
1305(H)×1049(V) |
|
Electronic Shutter |
1/3s~1/100,000s |
|
Video Frame Rate |
25/50fps@720P |
30/60fps@720P |
|
Synchronization |
Internal |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens |
|
Focal Length |
3.6mm (2.8mm, 6mm, 8mm optional) |
|
Angle of View |
H: 70º(89º/46.5º/35º) |
|
Mount Type |
M12 |
|
General |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max 3.3W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
Ingress Protection |
IP66 |
|

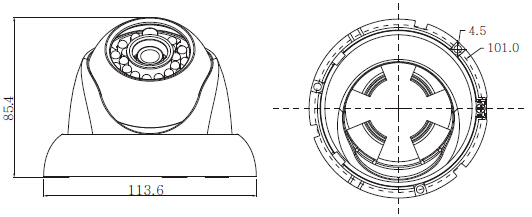

Dimensions |
Φ113.6mm×85.4mm |
|
Weight |
0.35kg |  |
