HAC-HDW1200R-VF
2Megapixel 1080P IR HDCVI Dome Camera


Features
>1/2.7" 2Megapixel CMOS
>25/30fps@1080P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
>2.7~12mm vari-focal lens
>Max. IR LEDs length 30m, Smart IR
>IP66, DC12V

Specifications
Model
HAC-HDW1200RP-VF
HAC-HDW1200RN-VF
Camera
Image Sensor
1/2.7" 2Megapixel CMOS
Effective Pixels
1930(H)×1088(V)
Electronic Shutter
1/50s~1/100,000s
1/60s~1/100,000s
Video Frame Rate
25fps@1080P
30fps@1080P
Synchronization
Internal
Min. Illumination
0.01Lux@F1.2(AGC ON), 0Lux IR on
Video Output
1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length
30m, Smart IR
Day/Night
Auto(ICR) / Color / B/W
Noise Reduction
2D
Lens
Focal Length
2.7~12mm
Angle of View
H: 109º~35º
Lens Type
Manual / Fixed Iris
Mount Type
Φ14
General
Power Supply
DC12V±20%
Power Consumption
Max 3.8W
Working Environment
-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance
Over 500m via 75-3 coaxial cable
Ingress Protection
IP66

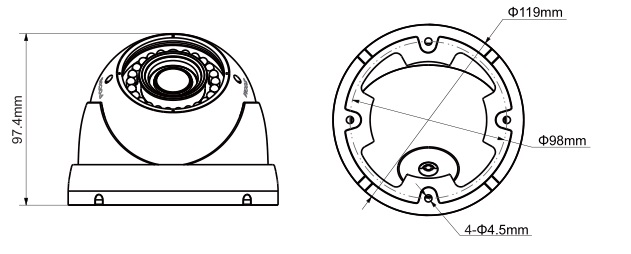

Dimensions
Φ119mm×97.4mm
Weight
0.55kg
Material
Metal
