Features
>1/2.7" 2Megapixel CMOS
>25/30fps@1080P
>High speed, long distance real-time transmission
>Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP66, DC12V
Specifications
|
Model |
HAC-HFW1200RMP |
HAC-HFW1200RMN |
|
Camera |
|
Image Sensor |
1/2.7" 2Megapixel CMOS |
|
Effective Pixels |
1930(H)×1088(V) |
|
Electronic Shutter |
1/50s~1/100,000s |
1/60s~1/100,000s |
|
Video Frame Rate |
25fps@1080P |
30fps@1080P |
|
Synchronization |
Internal |
|
Mini. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output |
|
Camera Features |
|
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D |
|
Lens |
|
Focal Length |
3.6mm fixed lens (6mm optional) |
|
Angle of View |
H: 80.6º(57.55º) |
|
Mount Type |
M12 |
|
General |
|
Power Supply |
DC12V±20% |
|
Power Consumption |
Max 3.5W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 300m via 75-3 coaxial cable |
|
Ingress Protection |
IP66 |
|

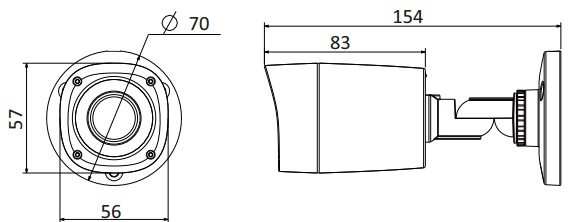

Dimensions(W×D×H) |
F70mm×154mm |
|
Weight |
0.3kg |
|
Others |
Default: bracket included |  |
