Features
>20x optical zoom
>Max 50/60fps@720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Control over coaxial cable, long distance real-time transmission
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>IR Distance up to 100m
>IP66
Technical Specifications
|
Model |
SD6C120I-HC |
|
Camera |
|
Image Sensor |
1/3” Exmor CMOS |
|
Effective Pixels |
1280(H) x 960(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Min. Illumination |
Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on) |
|
S/N Ratio |
More than 50dB |
|
Resolution |
720P(25/30/50/60fps) |
|
Video Output |
1-channel BNC HDCVI high definition video output |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
2D/3D |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens |
|
Focal Length |
4.7mm~94mm(20x Optical zoom) |
|
Max Aperture |
F1.4 ~ F2.6 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 54.1° ~ 3.2° |
|
Close Focus Distance |
100mm~ 1000mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s |
|
Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
|
Preset |
80(DH-SD), 255(Pelco-P/D) |
|
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
|
Time Task |
Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
IR Distance |
100m (2 near IR LED+ 4 far IR LED) |
|
Audio |
|
Interface |
1 channel In |
|
Auxiliary Interface |
|
RS485 |
1 |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
AC 24V/2.2A (±10%) |
|
Power Consumption |
10.5W, 26W (IR on, Heater on) |
|
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
N/A |
|

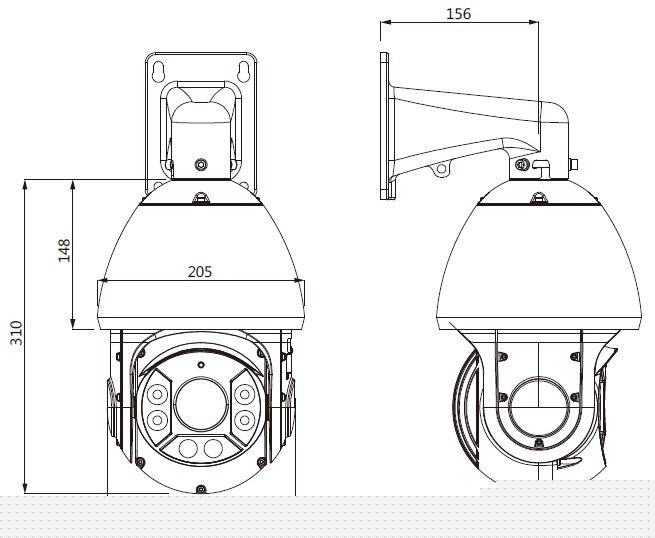

Dimensions |
Φ204.7(mm) x 335.9(mm) |
|
Weight |
7.5kg |  |
