Features
>12x/20x/30x optical zoom
>Max. 25/30fps@1080P(1920 x 1080) & 20/30/50/60fps@720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Max 400°/s pan speed, 360° endless pan rotation
>Control over coaxial cable, long distance real-time transmission
>HD and SD switchable
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>IR Distance up to 100m
>IP66,OSD
Specifications
|
Model |
SD59212I-HC |
SD59220I-HC |
SD59230I-HC |
|
Camera |
|
Image Sensor |
1/2.8” Exmor CMOS |
|
Effective Pixels |
1920(H) x 1080(V), 2Megapixels |
|
Horizontal Resolution |
≥1000TVL |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Min. Illumination |
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on) |
Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on) |
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on) |
|
S/N Ratio |
More than 50dB |
|
Resolution |
25/30fps@1080P, 25/30/50/60fps@720P |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
2D/3D |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens |
|
Focal Length |
5.1mm~61.2mm
(12x Optical zoom) |
4.7mm~94mm
(20x Optical zoom) |
4.3mm~129mm
(30x Optical zoom) |
|
Max Aperture |
F1.6~ F3.0 |
F1.4~ F2.6 |
F1.6 ~ F5.0 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 51.3° ~ 4.64° |
H: 54.1° ~ 3.2° |
H: 65.1° ~ 2.34° |
|
Close Focus Distance |
100mm ~ 1000mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s |
|
Preset Speed |
Pan: 400° /s; Tilt: 300° /s |
|
Preset |
300(DH-SD),255(Pelco-P/D) |
|
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
IR Distance |
100m |
|
Audio |
|
Interface |
1 channel In |
|
Auxiliary Interface |
|
RS485 |
1 |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
AC24V/3A (±10%) |
|
Power Consumption |
12W, 25W (IR on) |
|
Working Environment |
-40ºC ~ 70ºC / Less than 90% RH |
|
Ingress Protection |
IP66 |
|

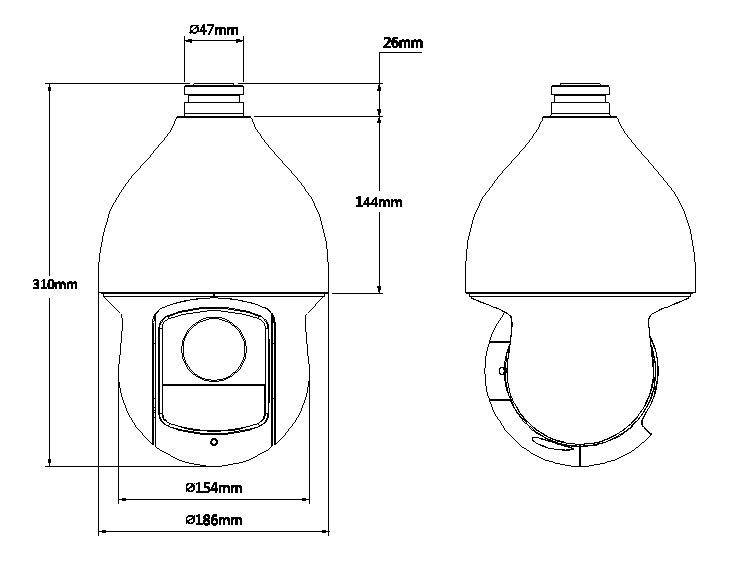

Dimensions |
Φ186.0(mm) x 310(mm) |
|
Weight |
3.5Kg |  |
