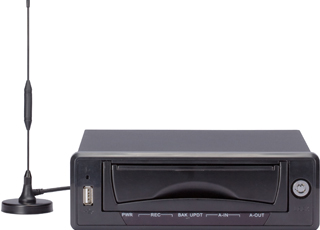

Overview
• 4ch video inputs
• 4/1ch audio in/out, 1/1ch Mic in/out
• DVR0404ME-H: All channel D1(4CIF)
• 1 VGA output up to SXGA, 2TV
• 7/2ch alarm in/out, RS485
• Car No., GPS, Speed live-view & recording
• GPS / Wi-Fi / 3G optional, RJ45(100M)
• 1 SATA(Vibration-proof), 2 USB
Features
> Up to 4 cameras with SXGA realtime live view
> H.264 dual-stream video compression
> DVR0404ME-U: 1ch@D1 + 3ch@CIF (1~25/30fps) realtime recording
> DVR0404ME-H: Full channel D1 realtime recording
> VGA/TV simultaneous video output
> Full channel synchronous realtime playback
> Support 1 SATA HDD, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Aviation connectors adopted
Technical Specifications
|
Model |
DVR0404ME-U |
DVR0404ME-H |
|
System |
|
Main Processor |
Embedded microprocessor |
|
Operating System |
Embedded LINUX |
|
Video |
|
Input |
4 channel |
|
Standard |
NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
|
Audio |
|
Input |
4 channel |
|
Output |
1 channel |
|
Two-way Talk |
1 channel Input, 1 channel Output, BNC |
|
Display |
|
Interface |
1VGA, 2 TV |
|
Resolution |
1280×1024, 1280×720, 1024×768, 800×600 |
|
Display Split |
1/4 |
|
Privacy Masking |
4 rectangular zones (each camera) |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Video/Audio Compression |
H.264 / PCM |
|
Resolution |
D1/4CIF(704×576/704×480) / HD1(352×576/352×480) / 2CIF(704×288/704×240) / CIF(352×288/352×240) / QCIF(176×144/176×120) |
|
Record Rate |
Main Stream |
1ch@D1 + 3ch@CIF (1~25/30fps) |
Full channel@D1(1~25/30fps) |
|
Sub Stream |
QCIF(1~25/30fps), CIF(1-6/7fps) |
CIF/QCIF(1~25/30fps) |
|
Bit Rate |
48~4096Kb/s |
|
Image Quality |
1~6 level(level 6 is the best, VBR effectively) |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection & Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Alarm Input |
7 channel |
|
Relay Output |
2 channel |
|
Playback & Backup |
|
Sync Playback |
1/2/4 |
|
Search Mode |
Time/Date, Alarm, Motion Detection & Exact search (accurate to second) |
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / eSATA Device / Network |
|
Network |
|
Ethernet |
RJ-45 port (10/100M) |
|
Wi-Fi |
Optional |
|
3G |
Optional |
|
GPS |
Built-in high accurate GPS module(optional) |
|
Network Functions |
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server |
|
Remote Operation |
Monitor, PTZ control, Playback, System setting, File download, Log information |
|
Storage |
|
Internal HDD |
1 SATA port |
|
Memory Slot |
2 SD cards (Optional) |
|
Auxiliary Interface |
|
USB |
2 ports (1 Rear), USB2.0 |
|
RS232 |
1 port, For PC communication & Keyboard |
|
RS485 |
1 port, For PTZ control |
|
General |
|
Power Supply |
+12V / +24V / +60V(+8V~+60V) |
|
Power Consumption |
<15W(with HDD) |
|
Working Environment |
0°C ~+55°C / 10%~95%RH / 86~106kpa |
|

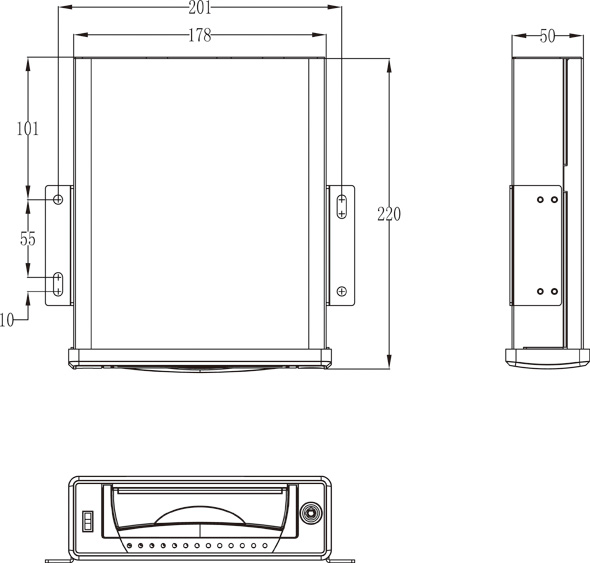

Dimension(W×D×H) |
178mm×220mm×50mm |
|
Weight |
2.1KG(with HDD) |
|
Vibration-proof |
5Hz~300Hz: X / Y / Z each direction 8 hours
5Hz~11Hz: Vibration amplitude 10mm
11Hz~300Hz: 50m/s2 |  |
