DVR2104HC-H
4 Channel 960H Mini 1U Standalone DVR


Features

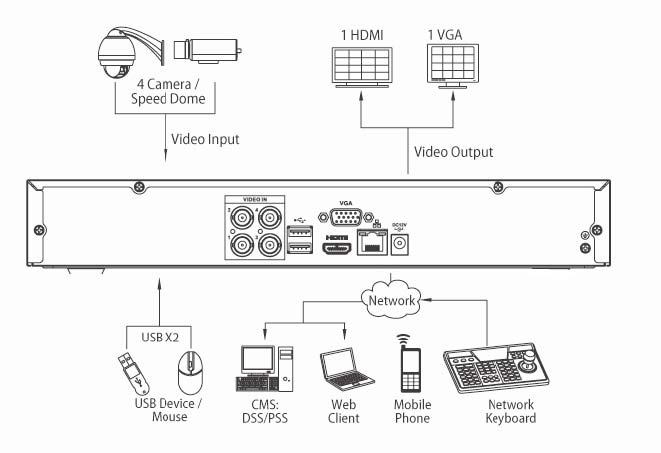

>Up to 4 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>DVR2104HC-H: All channel 960H realtime recording
>HDMI/VGA simultaneous video output
>4 channel synchronous realtime playback, GRID interface & smart search
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Technical Specifications
Model
DVR2104HC-H
System
Main Processor
Embedded processor
Operating System
Embedded LINUX
Video
Input
4 channel, BNC
Standard
NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Display
Interface
1 HDMI,1 VGA,
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Display Split
1/4
Privacy Masking
4 rectangular zones (each camera)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression
H.264 / G.711
Resolution
960H(960x576/960x480)/D1(704x576/704x480)/2CIF(704×288/704×240)/CIF(352×288/352×240)/ QCIF(176×144/176×120)
Record Rate
Main Stream:
960H/D1/HD1/2CIF/CIF (1~25/30fps)
Extra Stream
CIF/QCIF(1~25/30ps)
Bit Rate
48~3072Kb/s
Record Mode
Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events
Recording, Tour, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback
1/4
Search Mode
Time/Date, MD & Exact search (accurate to second)
Playback Functions
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device / Network
Network
Ethernet
RJ-45 port (10/100M)
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Storage
Internal HDD
1 SATA port, up to 4TB
Auxiliary Interface
USB Interface
2 ports (2 Rear), USB2.0
General
Power Supply
DC12V/2A
Power Consumption
10W(without HDD)
Working Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H)
Mini 1U,325mm×245mm×45mm
Weight
1.5KG(without HDD)
