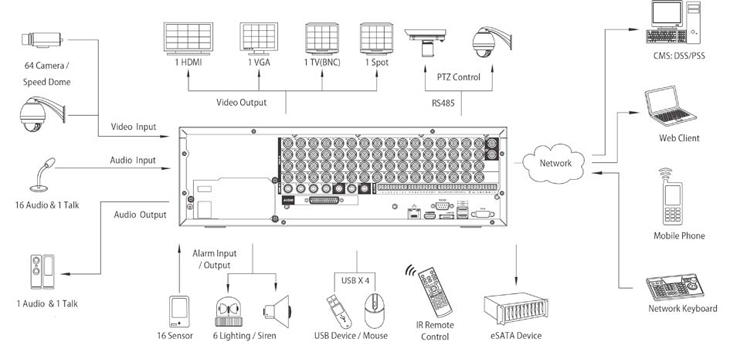

Overview
• 64ch video inputs
• 16/1ch audio in/out, 1/1ch Mic in/out
• All channel 2CIF or every 8ch: 1ch D1 & 7ch CIF
• HDMI, VGA output up to 1080p, 1 TV, 1 Spot
• 16ch alarm in & 6ch relay out, RS485
• 16ch sync realtime playback
• 8 SATA, 1 eSATA , 4 USB, 1 RJ45(1000M)
Features
> Up to 64 cameras with 1080p realtime live view
> H.264 dual-stream video compression
> All channel 2CIF or every 8 channel: 1ch D1 & 7ch CIF realtime recording
> HDMI / VGA / TV / Spot simultaneous video output
> 16 channel synchronous realtime playback, GRID interface & smart search
> 3D intelligent positioning with Dahua PTZ camera
> Support 8 SATA HDDs up to 32TB, 1eSATA up to 16TB, 4 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Technical Specifications
|
Model |
DVR6404LF-S |
|
System |
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Video |
|
Input |
64 channel, BNC |
|
Standard |
NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
|
Audio |
|
Input |
16 channel, BNC |
|
Output |
1 channel, BNC |
|
Two-way Talk |
1 channel Input, 1 channel Output, BNC |
|
Display |
|
Interface |
1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC |
|
Resolution |
1920 ×1080, 1280 ×1024, 1280×720, 1024×768 |
|
Display Split |
1/4/8/9/16/25/32/64 |
|
Privacy Masking |
4 rectangular zones (each camera) |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Video/Audio Compression |
H.264 / G.711 |
|
Resolution |
D1/4CIF(704×576/704×480)/2CIF(704×288/704×240)/CIF(352×288/352×240)/QCIF(176×144/176×120) |
|
Record Rate |
Main Stream |
All channel 2CIF@25/30fps or every 8ch: 1ch D1 & 7ch CIF@25/30fps |
|
Sub Stream |
CIF/QCIF(1~25/30fps) |
|
Bit Rate |
48~4096Kb/s |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection & Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Alarm Input |
16 channel |
|
Relay Output |
6 channel |
|
Playback & Backup |
|
Sync Playback |
1/4/9/16 |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / eSATA Device / Internal SATA burner/ Network |
|
Network |
|
Ethernet |
RJ-45 port (10/100/1000M) |
|
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
8 SATA ports (8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB |
|
External HDD |
1 eSATA port (Max 4 SATA HDDs), up to 16TB |
|
Auxiliary Interface |
|
USB |
4 ports (2 Rear), USB2.0 |
|
RS232 |
1 port, For PC communication & Keyboard |
|
RS485 |
1 port, For PTZ control |
|
General |
|
Power Supply |
AC100V~240V, 50/60Hz |
|
Power Consumption |
45W (Without HDD) |
|
Working Environment |
-10°C ~+55°C / 10~90%RH / 86~106kpa |
|
Dimension(W×D×H) |
3U, 439.7mm×448mm×133mm |
|
Weight |
8KG (Without HDD) |  |
