Overview

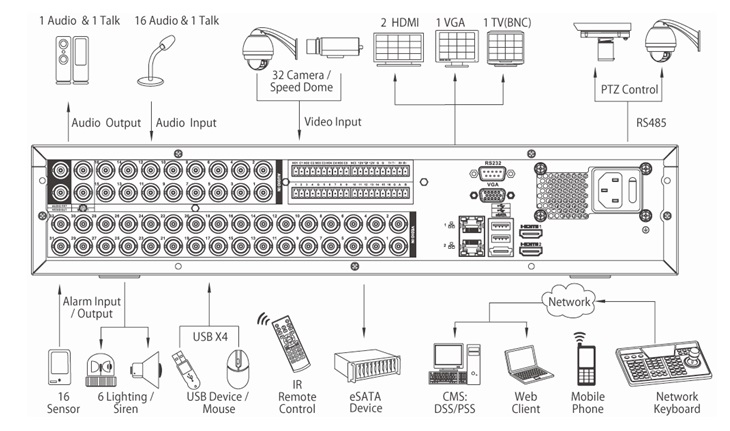

>24/32ch HDCVI video inputs
>16ch audio in&1ch audio out
>All channel@720P realtime recording
>2HDMI, VGA output up to 1080p, 1 TV
>16ch alarm in & 6ch relay out, RS485
>16ch sync realtime playback
>8 SATA, 1 eSATA, 4 USB, 2 RJ45(1000M)
Features
>Up to 24/32 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>HCVR5824/5832S: All channel 720P
>2HDMI/VGA/TV simultaneous video output
>16 channel synchronous realtime playback, GRID interface & smart search
>3D intelligent positioning with Dahua PTZ dome camera
>Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB,4 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Technical Specifications
|
Model |
HCVR5824S |
HCVR5832S |
|
System |
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded LINUX |
|
Video |
|
Input |
24 channel, BNC |
32 channel, BNC |
|
Standard |
HDCVI |
1080P/720P HDCVI Camera |
|
IP |
1080P/720P/D1/CIF IP Camera |
|
Audio |
|
Input |
16 channel, BNC |
|
Output |
1 channel, BNC |
|
Two-way Talk |
1 channel Input,1 channel Output, BNC |
|
Display |
|
Interface |
2 HDMI, 1 VGA, 1 TV |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1/4/8/9/16/25 |
1/4/8/9/16/25/36 |
|
Privacy Masking |
4 rectangular zones (each camera) |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Video/Audio Compression |
H.264/G.711 |
|
Record Rate |
Main Stream: |
720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
|
Extra Stream |
CIF/QCIF(1~25/30fps) |
|
Bit Rate |
48~4096Kb/s |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection & Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Alarm Input |
16 channel |
|
Relay Output |
6 channel |
|
Playback & Backup |
|
Sync Playback |
1/4/8/16 |
|
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device/eSATA Device/Internal SATA burner/Network |
|
Network |
|
Ethernet |
2RJ-45 port (10/100M/1000M) |
|
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
8 SATA ports(8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB |
|
External HDD |
1 eSATA port, up to 16TB |
|
Auxiliary Interface |
|
USB Interface |
4 ports (2 Rear), USB2.0 |
|
RS232 |
1 port, For PC communication & Keyboard |
|
RS485 |
1 port RS485 for PTZ control, 1 port RS422 for Keyboard |
|
General |
|
Power Supply |
AC 100~240 V, 50/60 Hz |
|
Power Consumption |
40W(Without HDD) |
|
Working Environment |
-10°C ~+55°C/10%~90%RH / 86~106kpa |
|
Dimension(W×D×H) |
2U, 440mm×460mm×89mm |
|
Weight |
6.5KG(without HDD) |  |
