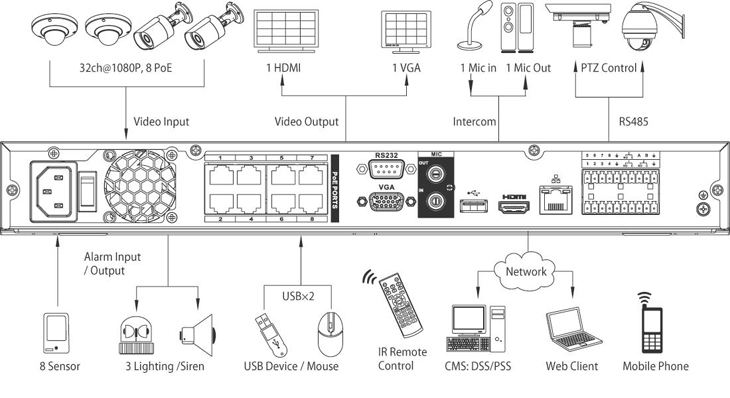

Overview
>8/16/32/64ch IP camera inputs
>1/1ch Mic in/out
>8/16/32/64ch@1080p
>Compatible with 1080p, 720p, D1 and etc.
>HDMI, VGA output up to 1080p
>8ch alarm in & 3ch relay out, RS485, RS232
>2 SATA, 2 USB, 1 RJ45(1000M)
>Incoming bandwidth:256Mbps
>8 PoE ports
Features
>Up to 8/16/32/64 channel with 1080P realtime live view
>H.264/MJPEG dual codec decoding
>Max 256Mbps incoming bandwidth
HDMI / VGA simultaneous video output
>8/16/32 channel synchronous realtime preview, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.2 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 2 SATA HDDs up to 8TB, 2 USB2.0
>Support IPC UPnP, 8 PoE ports
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Technical Specifications
|
Model |
NVR7208-8P |
NVR7216-8P |
NVR7232-8P |
NVR7264-8P |
|
System |
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Video & Audio |
|
IP Camera Input |
8 channel |
16 channel |
32 channel |
64 channel |
|
Two-way Talk |
1 channel Input, 1 channel Output, RCA |
|
Display |
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 & etc. |
|
Display Split |
1/4/8/9 |
1/4/8/9/16 |
1/4/8/9/16/25/36 |
1/4/8/9/16/25/36 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Compression |
H.264 / MJPEG |
|
Resolution |
1080p(1920×1080) / 720p(1280×720) / D1(704×576/704×480) & etc. |
|
Record Rate |
192Mbps |
|
Bit Rate |
48~ 8192kbps |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection & Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Alarm Input |
8 channel |
8 channel |
8 channel |
8 channel |
|
Relay Output |
3 channel |
3channel |
3channel |
3channel |
|
Playback & Backup |
|
Sync Playback |
1/4/9 |
1/4/9/16 |
1/4/9/16 |
1/4/9/16 |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / Internal SATA burner/ Network |
|
Network |
|
Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
|
PoE |
8 ports (IEEE802.3af) |
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
2 SATA ports (2HDDs), up to 8TB, Raid (redundancy) |
|
Auxiliary Interface |
|
USB |
2 ports (1 Rear), USB2.0 |
|
RS232 |
1 port, For PC communication & Keyboard |
|
RS485 |
1 port, For PTZ control |
|
General |
|
Power Supply |
AC 100~240V, 50/60 Hz |
|
Power Consumption |
NVR: 60W (without HDD) |
|
PoE: Max 15W (each) |
|
Working Environment |
-10°C~+55°C / 10%~90%RH / 86~106kpa |
|
Dimension
(W×D×H) |
1U, 375mm×321mm×50mm |
|
Weight |
2.5KG (without HDD) |  |
