Features
>Up to 4/8 channel with 1080P realtime live view
> H.264/MJPEG dual codec decoding
> Max 56Mbps incoming bandwidth

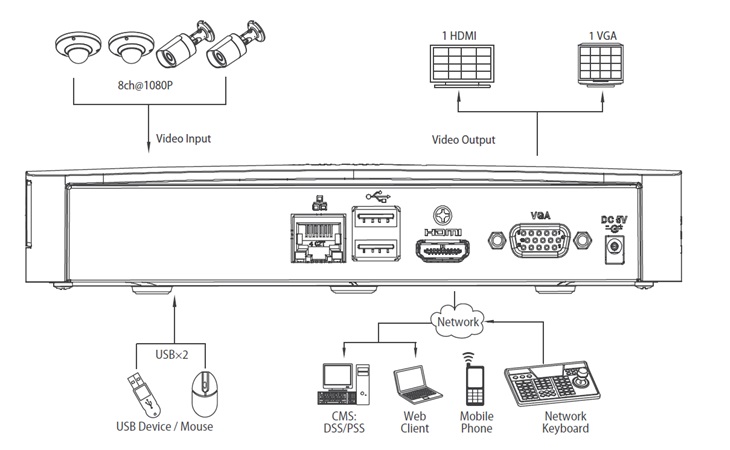

> HDMI/VGA simultaneous video output
> All channel synchronous realtime playback, GRID interface
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.3 conformance
> 3D intelligent positioning with Dahua PTZ camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS (Phone & Pad)
> Support P2P (QR code Scan)
> Black or white case (optional)
Specifications
|
Model |
NVR104 |
NVR108 |
|
System |
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Video |
|
IP Camera Input |
4 channel |
8 channel |
|
Display |
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1/4 |
1/4/8/9 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Compression |
H.264/MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) & etc. |
|
Record Rate |
Max 56Mbps |
|
Bit Rate |
48~8192kbps |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection |
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Playback & Backup |
|
Sync Playback |
1/4 |
1/4/9 |
|
Search Mode |
Time/Date, MD & Exact search (accurate to second), Smart search |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device/Network/Internal SATA burner |
|
Network |
|
Ethernet |
1RJ-45 port (10/100Mbps) |
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support Dahua IP camera, DVR, NVS and etc.),SNMP, P2P |
|
Max User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
1 SATA port, up to 4TB |
|
Auxiliary Interface |
|
USB |
2 ports (2 Rear), USB2.0 |
|
General |
|
Power Supply |
Single, DC5V/2A |
|
Power Consumption |
<2W (without HDD) |
|
Working Environment |
-10°C~+55°C/10%~90%RH/86~106kpa |
|
Dimension (W×D×H) |

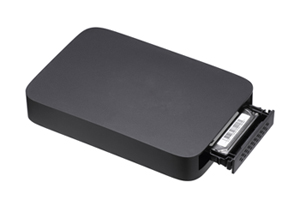

Smart Box, 192mm×128mm×36mm |
|
Weight |
320g (without HDD) |  |
