Features

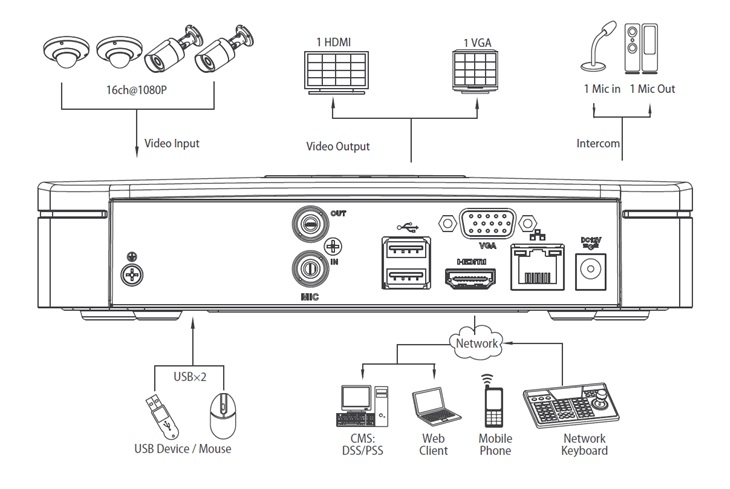

>Up to 4/8/16 channel with 1080P realtime live view
> H.264/MJPEG dual codec decoding
> Max 80Mbps incoming bandwidth
> Up to 5Mp resolution preview&playback
> HDMI/VGA simultaneous video output
> All channel synchronous realtime playback, GRID interface
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.3 conformance
> 3D intelligent positioning with Dahua PTZ camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
|
Model |
NVR4104 |
NVR4108 |
NVR4116 |
|
System |
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Video |
|
IP Camera Input |
4 channel |
8 channel |
16 channel |
|
Two-way Talk |
1channel Input, 1channel Output, RCA |
|
Display |
|
Interface |
1 HDMI,1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|
Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Compression |
H.264/MJPEG |
|
Resolution |
5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) |
|
Record Rate |
80Mbps |
|
Bit Rate |
48~ 8192kbps |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection & Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Playback & Backup |
|
Sync Playback |
1/4 |
1/4/9 |
1/4/9/16 |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device/Network/Internal SATA burner |
|
Network |
|
Ethernet |
1 RJ-45 port (10/100Mbps) |
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
|
Max. User Access |
128users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
1 SATA ports, up to 4TB |
|
Auxiliary Interface |
|
USB |
2 ports (2 Rear),USB2.0 |
|
General |
|
Power Supply |
DC12V/2A |
|
Power Consumption |
10W(without HDD) |
|
Working Environment |
-10°C~+55°C / 10%~90%RH / 86~106kpa |
|
Dimension
(W×D×H) |
Smart 1U, 205mm×205mm×45mm |
|
Weight |
0.5KG(without HDD) |  |
