Products  >> Network Video Recorder >> Beneficio NVR

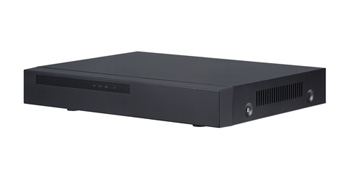

NVR4104/4108/4116H-P
4/8/16CH Mini 1U 4PoE Network Video Recorder


Features
>Up to 4/8/16 channel with 1080P realtime live view
> Max 80Mbps incoming bandwidth
> Up to 5Mp resolution preview&playback
> H.264/MJPEG dual codec decoding
> HDMI/VGA simultaneous video output
> All channel synchronous realtime playback, GRID interface
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.3 conformance
> 3D intelligent positioning with Dahua PTZ camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Support IPC UPnP, 4PoE ports
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Specifications
Model
NVR4104H-P
NVR4108H-P
NVR4116H-P
System
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX
Video
IP Camera Input
4 channel
8 channel
16 channel
Two-way Talk
1channel Input, 1channel Output, RCA
Display
Interface
1 HDMI,1 VGA
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Display Split
1/4
1/4/8/9
1/4/8/9/16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression
H.264/MJPEG
Resolution
5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Record Rate
80Mbps
Bit Rate
48~ 8192kbps
Record Mode
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback
1/4
1/4/9
1/4/9/16
Search Mode
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device/Network/Internal SATA burner
Network
Ethernet
1 RJ-45 port (10/100Mbps)
PoE
4 ports (IEEE802.3at)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access
128users
Smart Phone
iPhone, iPad, Android, Windows Phone
Storage
Internal HDD
1 SATA port, up to 4TB
Auxiliary Interface
USB
2 ports,USB2.0
General
Power Supply
Single, DC48V/1.5A
Power Consumption
NVR: 10W(without HDD)
PoE: Max 25.5W for single port
Working Environment
-10°C~+55°C / 10%~90RH / 86~106kpa
Dimension
(W×D×H)
Mini 1U, 325mm×240mm×45mm
Weight
1.25KG(without HDD)
