Products  >> Network Video Recorder >> Beneficio NVR

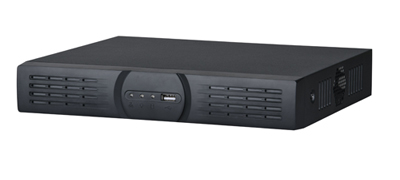

NVR1104HS/1108HS
4/8CH Compact 1U Network Video Recorder


Features
>Up to 4/8 channel IP camera input
>Max 24Mbps for NVR1104HS/56Mbps for NVR1108HS incoming bandwidth
>HDMI/VGA simultaneous video output
>All channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Support P2P, QR code scan & add
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS

Specifications
Model
NVR1104HS
NVR1108HS
System
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX
Video& Audio
IP Camera Input
4 channel
8 channel
Two-way talk
N/A
Display
Interface
1 HDMI, 1 VGA
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Display Split
1/4
1/4/8/9
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression
H.264
Resolution
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)& etc.
Record Rate
Max 24Mbps
Max 56Mbps
Bit Rate
48~8192kbps
Record Mode
Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval
1~120 min (default: 60 min), Post-record: 10~300 sec
Video Detection& Alarm
Trigger Events
Recording, PTZ, Tour, Screen tips
Video Detection
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback
1/4
1/4/9
Search Mode
Time/Date, MD & Exact search (accurate to second), Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device/Network/Internal SATA burner
Network
Ethernet
1RJ-45 port (10/100Mbps)
Network Function
HTTP, TCP/IP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android, Windows Phone
Storage
Internal HDD
1 SATA port, up to 4TB
Auxiliary Interface
USB
2 ports (1 Rear), USB2.0
General
Power Supply
DC12V/1.5A
Power Consumption
<3W (without HDD)
Working Environment
-10°C~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H)
Compact 1U, 260mm×220mmx45mm
Weight
0.7~0.8kg(without HDD)
