Features
>Dual DSP processor architecture.
>Unique dual-streaming insure high quality photo output and video output.
>Advanced video compression technology, high compression rate, accurate and stable bit
stream control
>Multi(dual) encoding streams and ACF (activity control frame)supported.
>Support DC12V power supply.
>Support indicator light output control.
>Support number plate recognition.
Technical Specifications
|
Model |
ITC102-GVRB3A |
|
General |
Processor |
TI DaVinci Series DSP |
|
Operating System |
Embedded LINUX |
|
Resource |
Simultaneous remote monitoring, local recording and remote control |
|
Camera Shutter Speed |
Manual/Auto
（Adjustable，1/3~1/10000） |
|
Camera |
Image Sensor |
1/3” CMOS |
|
Resolution |
1280(H)×960(V) |
|
Day/Night |
Support |
|
Gain Control |
Auto/Manual |
|
WB |
Auto/Manual |
|
Video |
Video Compression |
H.264 standard |
|
Interface |
I/O output |
2 channel |
|
Data Interface |
1 RS232 serial ports,2 RS485 serial ports,
1 10/100M Ethernet port |
|
LED Light Sync Interface |
1 channel |
|
Lens Interface |
M12 interface (3.6,6mm choosable) |
|
Network |
Network Functions |
HTTP,TCP/IP,UDP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,NTP |
|
Auxiliary |
Video Detection |
Support |
|
License Plate Recognition |
Support |
|
Remote Control Function |
Support, through web client setting and control |
|
Image Records Tamper-resistance |
Support watermark tech |
|
Environmental |
Power Supply |
DC 12V |
|
Power Consumption |
<2W |
|
Operating Environment |
Temperature -10°C~+60°C, humidity 10%~90% |
|

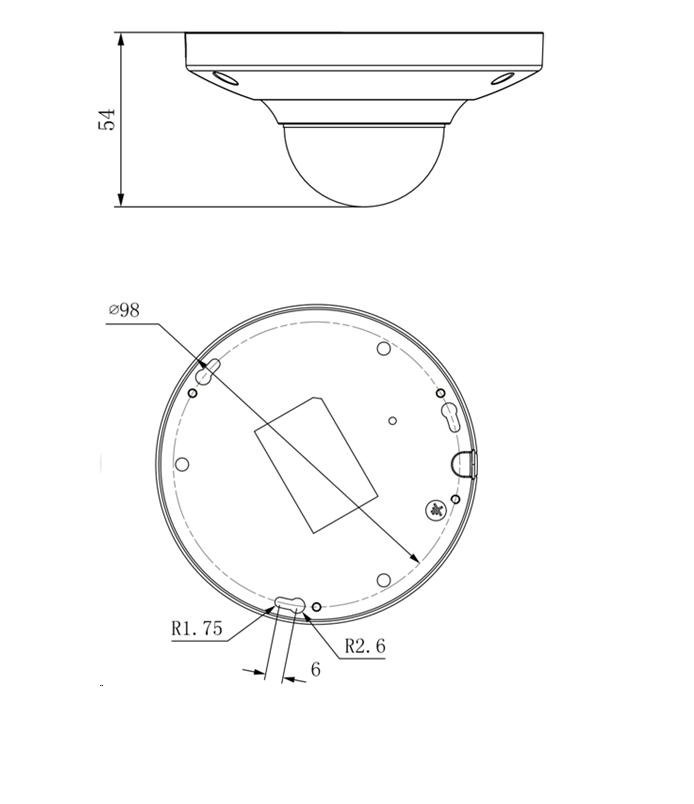

Dimension |
110mm × 54mm |
|
Weight |
250g |  |
