Features
>ARM + DSP dual processor architecture.
>Unique dual-streaming insure high quality photo output and video output.
>Advanced video compression technology, high compression rate, accurate and stable bit stream control
>Adopt 1.3M CCD image sensor, high color reducibility
>Multi(dual) encoding streams and ACF (activity control frame)supported.
>Support RS485 control and transparent serial port function.
>Support SD card storage.
>Support AC24 power supply.
>Support main frequency synchronization.
>Support strobe light signal output.
>Support number plate recognisetion.
Technical Specifications
|
Model |
ITC142-GVRB3A |
|
General |
Processor |
TI DaVinci Series DSP |
|
Operating System |
Embedded LINUX |
|
Resource |
Simultaneous remote monitoring, local recording and remote control |
|
Compression Algorithm |
Standard H.264 main profile 5.0 |
|
Camera Shutter Speed |
Manual/Auto
（Adjustable，1/60~1/10000） |
|
User Interface |
WEB, DSS |
|
Camera |
Image Sensor |
1/3” |
|
Video Compression |
NTSC |
|
Resolution |
1408*1024 |
|
Day/Night |
Support |
|
Gain Control |
Auto |
|
WB |
Auto |
|
Video |
Video Compression |
H.264 standard |
|
Video Resolution |
1280*960@22.5fps |
|
Bit Rate |
160K~8Mbps(Support customized setup) |
|
Interface |
Alarm Input |
1 channel |
|
Alarm output |
1 channel |
|
Data Interface |
1 RS232 serial ports,1 RS485 serial port,
1 10/100M Ethernet port |
|
LED Light Sync Interface |
1 channel |
|
Lens Interface |
C/CS |
|
Flash Lamp Sync Interface |
1 channel |
|
Network |
Network Functions |
HTTP,TCP/IP,UDP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,NTP |
|
Wired Network |
1 channel,10/100M Ethernet,RJ45 interface |
|
Auxiliary |
Loop trigger |
Support |
|
Radar Trigger |
Support |
|
SD Card |
Support |
|
Video Detection |
Support |
|
License Plate Recognition |
Support |
|
Remote Control Function |
Support, through web client setting and control |
|
Image Records Tamper-resistance |
Support watermark tech |
|
Environmental |
Power Supply |
AC24V±20% |
|
Power Consumption |
<15W |
|
Operating Environment |
Temperature -20°C~+70°C,
Humidity 10%~90% |
|

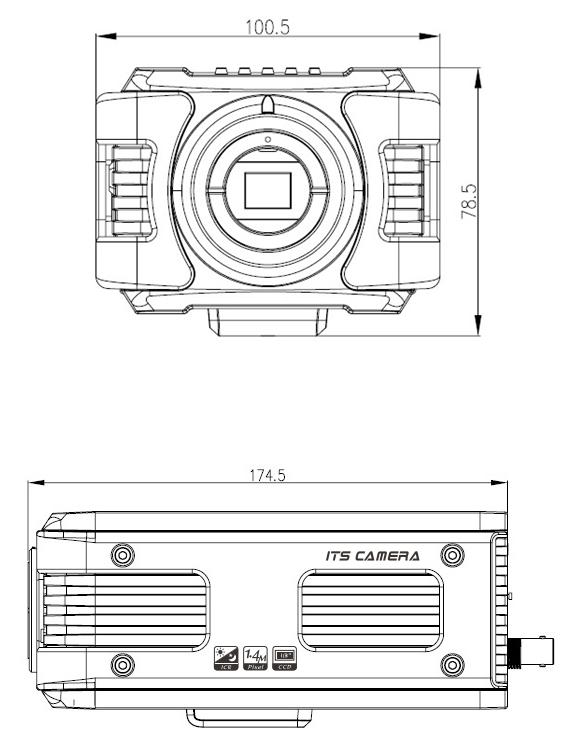

Dimension |
174.5 × 100.5 × 78.5 (W×D×H) |
|
Weight |
2.5kg |  |
