Features
>ARM + DSP dual processor architecture.
>Unique dual-streaming and dual-shutter technology insure high quality photo output and video output in daytime and nighttime.
>Advanced video compression technology ,high compression rate, accurate and stable bit
stream control.
>Adopt high performance 8M CCD image sensor, high color reducibility, high sensitivity.
>Accurate strobe light output control, make sure output synchronization.
>Support external synchronization function(AC power supply).
>Support traffic surveillance system trigger and snapshot.
>Support AC24V power supply.
>Support license plate recognition
>Inimitable traffic light arithmetic to solve yellowish red light regular problems
>Inimitable 2A arithmetic, support automatic white balance and gain
Technical Specifications
|
Model |
ITC803-GRB3A-C |
|
General |
Processor |
TI DaVinci Series DSP |
|
Operating System |
Embedded LINUX |
|
Resource |
Simultaneous remote monitoring, local recording and remote control |
|
User Interface |
WEB, DSS |
|
Camera |
Image Sensor |
4/3’’ CCD |
|
Shutter speed |
Manual/Auto(1/50~1/100000) |
|
HD Video Format |
H.264 standard, main profile 5.0 |
|
Image compression Format |
JPEG |
|
CCD Resolution |
3296*2472 |
|
Video Resolution |
1600*1200 |
|
Interface |
Alarm Input |
1 loop |
|
Alarm output |
1 loop |
|
Data Interface |
1 RS232serial port,1 RS485serial port,10/100M Ethernet port |
|
LED Light SynchronizatiOn Interface |
1 loop |
|
Lens Interface |
C |
|
Flash Lamp Synchronization Interface |
1loop |
|
Auxiliary |
Loop Trigger |
Support |
|
License Plate Recognition |
Support |
|
SD Card Storage |
Support |
|
Remote Control Function |
Support, through Web client config and control |
|
Image Records Tamper-resistance |
Support watermark tech |
|
Environmental |
Power Supply |
AC24V |
|
Power Synchronization Function |
Support |
|
Average Power Consumption |
<15W |
|
Operating Environment |
Temperature-30°C~+70°C, humidity10%~90% |
|

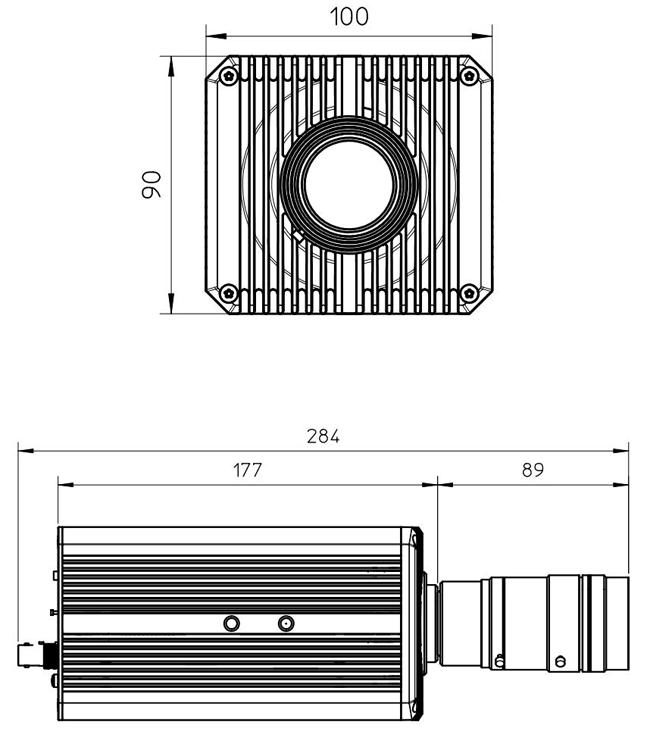

Dimension |
177mm×100mm×90mm(W×D×H) |
|
Weight |
3 Kg |  |
