General

Resolution

5 Megara，2592(H)*2048(V)

Image Sensor

1’’(16.06mm)  progressive CCD, Target Size:12.85mm(H)×9.64mm(V)

Sensor pixel size

5.5 µm (H) × 5.5 µm (V)

Dynamic range

64dB

Image Compress Mode

JPEG

HD Video Format

H.264 standard, main profile 5.0

HD Image Resolution

2592*2112

HD Video Resolution

2592*2048

HD Video Frame Rate

25fps

Camera Speed Shutter

1/25~1/100000

Image preprocessing

Smear Suppression

Support

Multi-channel Integration

Support

Edge Enhancement

Support

Dead Pixel Correction

Support

Automatic Noise Reduction

Support(3D Noise Reduction)

Auto Exposure(AE)

Support(Fully auto/ Custom interval auto/Custom)

Auto White Balance(AWB)

Support(Fully auto/ color temperature range auto/Custom)

Holographic Dual-shutter

Support (All image and videos ISC parameters)

Day/Night

Support (All image and videos ISC parameters)

Interface

Loop I /O input

6 loop, optocoupler input (switch)

Alarm Input

1 loop, optocoupler input (switch)

Alarm Output

1 loop, relay output

Wiper controller output

1 loop, relay output

External frequency source synchronous input

1 loop,( Select the external synchronization option take effect automatically)

LED Light Synchronization Interface

1 loop, Frequency can be set

Flash Lamp Synchronization Interface

5 loop, Optocoupler signal output

Video signal interface

1 CVBS/HD-SDI port(support Special features version)

Network interface

1 110/100M Ethernet port

Data interface

1 RS232 serial port,3 Radar serial(RS232),serial port, 1 Vehicle inspection / signal detector port(RS485)

Auto Iris

Support(DC Auto)

Lens Interface

C

Loop Trigger(RS485)

Support

Video Detection Trigger

Support

Special Function

License Plate Recognition

Support

Red Light function

Support

SD Card Storage

Support

Remote Control Function

Support, through Web client config and control

OSD information superimposed

Support, Information of the picture include time and place (channel address), Lane information (number,/direction), plate information(license plate and color), vehicle information (speed, vehicle length, body color and the type of vehicle), Illegal (illegal event name and the illegal code) and so on

Image Records Tamper-resistance

Support, Video/Image with watermark tech and check function

Environmental

Power Supply

AC24V

External Power Synchronization Function

Support, Sync phase support fine-tuning

External Frequency Synchronization Function

Support, Sync phase support fine-tuning

Average Power Consumption

<15W
(without  Adapter)

Operating Environment

Temperature-30°C~+70°C, humidity10%~90%

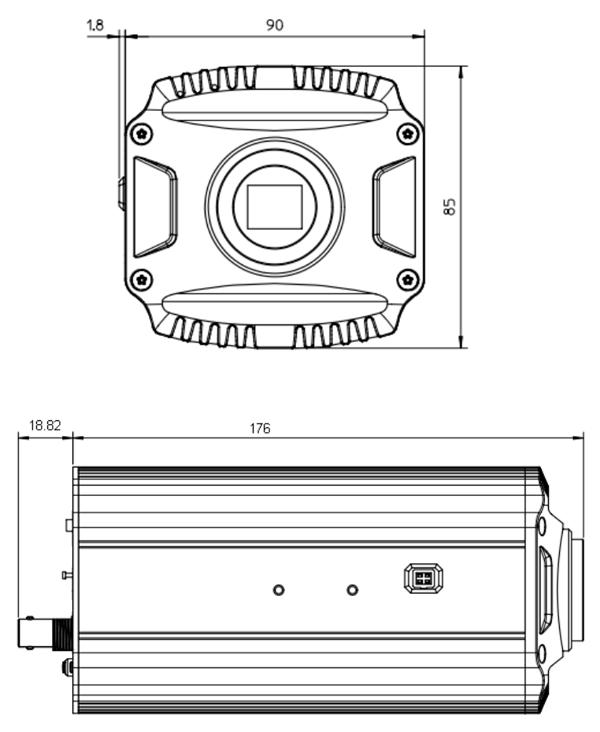

Dimension

176mm×90mm×85mm(W×D×H)

Weight

1.3 Kg
