Features
>1.3Megapixel CMOS brings excellent image quality and high sensitivity
>20x optical zoom lens realizes instant AF & quick zoom
>H.264 & MJPEG dual-stream encoding
>Max 25/30fps @ 1.3M resolution
>DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Built-in 2/1 alarm in/out
>Micro SD memory
>IR Distance up to 100m
>Wide-range temperature application: -40°C ~ +70°C
Specifications
|

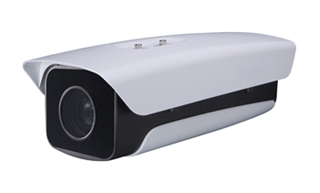

Model |
SDZW1020S-N |
|
Camera |
|
Image Sensor |
1/3” CMOS |
|
Effective Pixels |
1280(H) x 960(V), 1.3 Megapixels |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Min. Illumination |
B/W: 0.005 Lux/F1.4 |
|
S/N Ratio |
More than 50dB |
|
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
2D / 3D |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens |
|
Focal Length |
4.7mm ~ 94.0mm (20x Optical zoom) |
|
Max Aperture |
F1.4 ~ F2.6 |
|
Focus Control |
Auto/ Manual |
|
Angle of View |
H: 54.1°~ 3.2° |
|
Close Focus Distance |
10mm~ 1000mm |
|
Video |
|
Compression |
H.264 / MJPEG |
|
Resolution |
1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1.3M/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
|
Audio |
|
Compression |
G.711a / G.711u(32kbps) / PCM(128kbps) |
|
Interface |
1/1 channel In/Out |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
ONVIF |
ONVIF Profile S |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
IR Distance |
100m |
|
Auxiliary Interface |
|
RS485 |
1 port |
|
Memory Slot |
Micro SD, Max 64GB |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
AC24V/ DC12V optional |
|
Power Consumption |
<50W |
|
Working Environment |
-40°C ~ +70°C / < 90%RH |
|
Ingress Protection |
IP66 |
|
Dimensions(W×D×H) |
404mm×164mm×132mm |
|
Weight |
4kg | |
