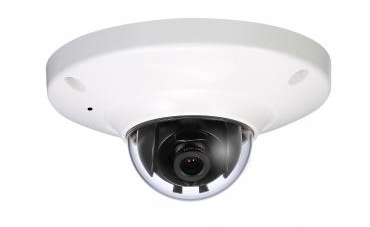

1.3Megapixel Water-Proof & Vandal-Proof Network Dome Camera
|
|
| |
Features
> 1/3” 1.3Megapixel progressive scan Aptina CMOS
> H.264 & MJPEG dual-stream encoding
> Max 25/30fps@1.3M(1280×960)
> Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (2.8mm,6mm optional)
> Micro SD memory, IP66, IK10, PoE
Technical Specifications
|
Model |
IPC-HDB4100C-(A) |
|
Camera |
|
Image Sensor |
1/3” 1.3Megapixel progressive scan CMOS |
|
Effective Pixels |
1280(H)x960(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/10000 |
|
Min. Illumination |
0.05lux/F1.2(color) |
|
S/N Ratio |
More than 50db |
|
Video Output |
N/A |
|
Camera Features |
|
Max. IR LEDs Length |
N/A |
|
Day/Night |
Auto(Electronic)/Color/B/W |
|
Backlight Compensation |
Off/BLC/HLC/DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm (2.8mm,6mm optional) |
|
Max Aperture |
F1.9(F2.0, F1.9) |
|
Focus Control |
Manual |
|
Angle of View |
H: 70°(89.6°/46°) |
|
Lens Type |
Fixed Lens |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264/ MJPEG |
|
Resolution |
1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1.3M/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps |
|
Audio |
|
Compression |
G.711a/G.711u/PCM(-A) |
|
Interface |
Built-in Mic(-A) |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, |
|
ONVIF |
ONVIF Profile S |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
N/A |
|
Alarm |
1/1 channel In/Out(-A) |
|
PIR Sensor Range |
N/A |
|
General |
|
Power Supply |
DC12V, PoE(802.3af) |
|
Power Consumption |
<2W |
|
Working Environment |
-20°C~+60°C, Less than 95% RH |
|
Ingress Protection |
IK10 |
|
Vandal Resistance |
IP66 |
|

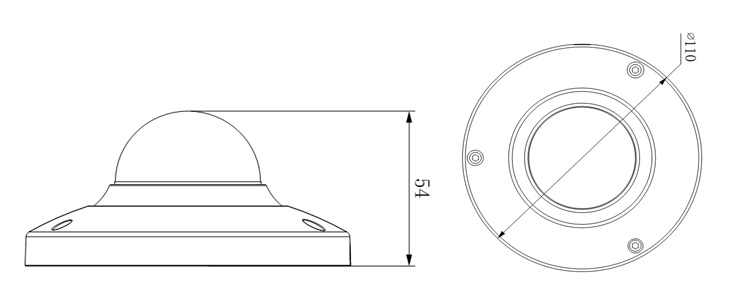

Dimensions |
Φ110mm×54mm |
|
Weight |
0.25kg |  |
| |
|
|
|
