Features
>1/3” 2Megapixel progressive scan Exmor CMOS
>H.264 ,H.264H &MJPEG dual-stream encoding
>25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), Auto iris, 3DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.3~12mm varifocal lens, (7-22mm varifocal lens optional)_
>Max. IR LEDs Length 100m
>IP66, PoE
Technical Specifications
|
Model |
IPC-HFW5200P-IRA |
IPC-HFW5200N-IRA |
|
Camera |
|
Image Sensor |
1/3”2Megapixel CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000s |
Auto/Manual, 1/4~1/10000s |
|
Min. Illumination |
0.01Lux/F1.2 (Color), 0.005Lux/F1.2(B/W);0Lux/F1.2(IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
1 channel BNC(1.0Vp-p,75Ω) |
|
Camera Features |
|
Max. IR LEDs Length |
100m |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.3~12mm (7~22mm optional) |
|
Max Aperture |
F1.4 |
|
Focus Control |
Manual |
|
Angle of View |
H: 87.5°～31.1°(46.1°～16.7°optional) |
|
Lens Type |
Manual/Auto Iris(DC) |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264/ H.264H/ MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/
D1(704×576)/CIF(352×
288) |
1080P(1920×1080)/720P(1280×720)/
D1(704×480)/CIF(352×
240) |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps |
|
Audio |
|
Compression |
G.711a/G.711u(64kbps)/PCM(128kbps) |
|
Interface |
1/1 channel In/Out |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL,TCP/IP,UDP, UPnP, ICMP,
IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE,
DDNS, FTP, IP Filter, QoS, Bonjour |
|
ONVIF |
ONVIF Profile S |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 32GB |
|
RS485 |
N/A |
|
Alarm |
2/1 channel In/Out |
|
PIR Sensor Range |
N/A |
|
General |
|
Power Supply |
DC12V, PoE (802.3af) |
|
Power Consumption |
<16W |
|
Working Environment |
-20°C~+60°C, Less than 95% RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
N/A |
|

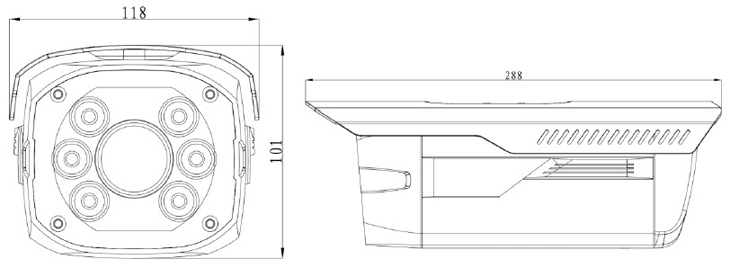

Dimensions |
288mm×118mm×101mm |
|
Weight |
2.5kg |  |
