Features
> 1/2.5” 5Megapixel progressive scan CMOS
> H.264 & MJPEG dual-stream encoding
> Max 12fps@5M(2560×1920)&25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, Auto Iris, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4~9mm varifocal motorized lens
> Built-in 1/1 alarm in/out
> Max. IR LEDs length 20m
> Micro SD memory, IP66, IK10, PoE
Specifications
|
Model |
IPC-HDB5502(-DI) |
IPC-HDBW5502(-DI) |
|
Camera |
|
Image Sensor |
1/2.5” 5Megapixel CMOS |
|
Effective Pixels |
2560(H)x1920(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000 |
|
Min. Illumination |
Color: 0. 01Lux/F1.6 |
|
S/N Ratio |
More than 50dB |
|
Video Output |
1 channel, BNC(1.0Vp-p/75Ω) |
|
Camera Features |
|
Max. IR LEDs Length |
N/A |
20m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
4~9mm motorized |
|
Max Aperture |
F1.6 |
|
Focus Control |
Auto |
|
Angle of View |
H: 86.5°(Wide)~28.6°(Tele) |
|
Lens Type |
Motorized /Auto Iris(DC) |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264H/H.264B/H.264/MJPEG |
|
Resolution |
5M(2536×1920)/3M(2048×1536)/1080P(1920×1080) / 720P(1280×720)
/D1(704×576) / CIF(352×288) |
|
Frame Rate |
Main Stream |
5M(1~12fps)/1080P/720P(1~25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264H: 32K ~ 8192Kbps |
|
Audio |
|
Compression |
G.711a / G.711u/ PCM |
|
Interface |
1/1 channel In/Out |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,
RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter,
QoS, Bonjour |
|
Compatibility |
ONVIF PSIA CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
N/A |
|
Alarm |
1/1 channel In/Out |
|
PIR Sensor Range |
N/A |
|
General |
|
Power Supply |
DC12V/AC24V, PoE(802.3af) |
|
Power Consumption |
<8.5W(AC24V: +2W) |
|
Working Environment |
-30°C~+60°C , Less than 90%RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
IK10 |
|

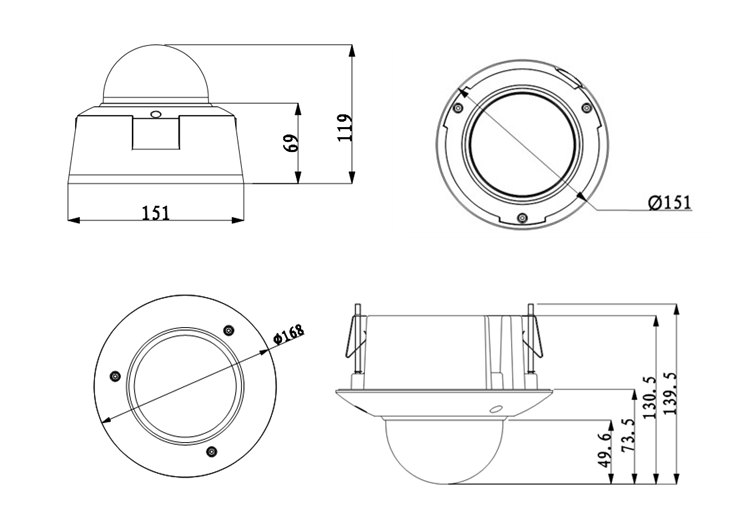

Dimensions |
Φ151mm×119mm
Φ146mm×139.5mm(-DI) |
|
Weight |
1.25kg
1.18Kg(-DI) | .png) |
