Features
>1/2.8" 2 Megapixel progressive scan CMOS
> 5.1~61.2mm 12x optical zoom
> H.264&MJPEG dual-stream encoding
> Max 25/30fps@1080P(1920x1080)
> WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Built-in 1/1 alarm in/out
> Micro SD memory, IP66, PoE
Specifications
|
Model |
IPC-HFW5200EP-Z12 |
IPC-HFW5200EN-Z12 |
|
Camera |
|
Image Sensor |
1/2.8” 2Megapixel Exmor CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000s |
Auto/Manual, 1/4~1/10000s |
|
Min. Illumination |
0. 05Lux/F1.6( Color), 0.005Lux/F1.6( B/W) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
1 port |
|
Camera Features |
|
Max. IR LEDs Length |
100m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / WDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 8 areas |
|
Lens |
|
Focal Length |
5.1mm~61.2mm(12x optical zoom) |
|
Max Aperture |
F1.6~F3.0 |
|
Focus Control |
Manual/Auto |
|
Angle of View |
H: 51.3°~4.64° |
|
Lens Type |
Manual/ Auto Iris(DC) |
|
Mount Type |
Board-in Type |
|
Close Focus Distance |
100mm~1000mm |
|
Varifocal Speed |
3.8S |
|
Video |
|
Compression |
H.264/MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288) |
|
Frame Rate |
Main Stream |
1080P (1~25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps |
|
Audio |
|
Compression |
G.711a / G.711u |
|
Interface |
1/1 channel In/Out |
|
Network |
|
Ethernet |
RJ-45 (10/100/1000Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
Compatibility |
ONVIF, PSIA, CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
Alarm |
1/1 channel In/Out |
|
General |
|
Power Supply |
DC12V(AC24V optional), PoE (802.3af) |
|
Power Consumption |
<15W |
|
Working Environment |
-30°C~+60°C, less than 95% RH |
|
Ingress Protection |
IP66 |
|

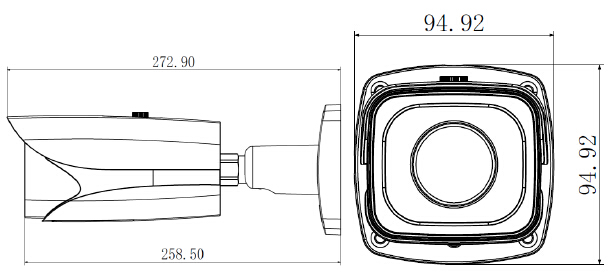

Dimensions |
273.3mm × 94.8mm× 94.8mm |
|
Weight |
1.3kg |

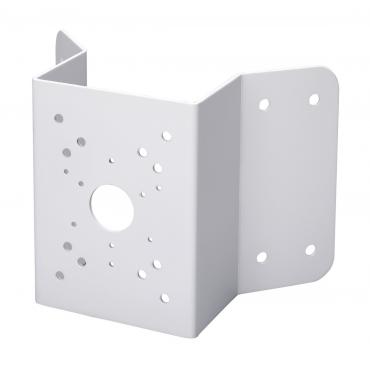

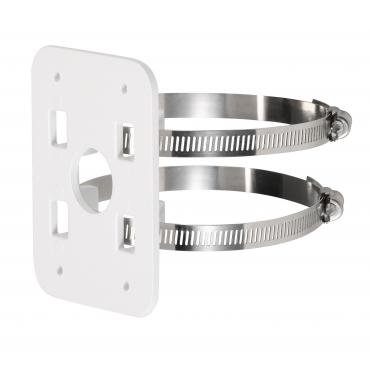

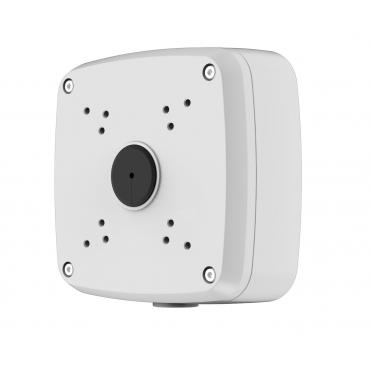

Accessories
|
