Features
>1/2.8” 2Megapixel progressive scan CMOS
>H.264&MJPEG triple-stream encoding
>25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Smart Detection supported
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm,6mm optional)
>Max. IR LEDs Length 30m
>IP67, PoE
Specifications
|
Model |
IPC-HDW4220M |
|
Camera |
|
Image Sensor |
1/2.8” 2Megapixel progressive scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/10000s |
|
Min. Illumination |
0.0 1Lux/F2.0 (Color), 0Lux/F2.0(IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features |
|
Max. IR LEDs Length |
30m |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm (2.8mm,6mm optional) |
|
Max Aperture |
F2.0(F2.0/F2.0) |
|
Focus Control |
Manual |
|
Angle of View |
H: 83.5°/106°/56° |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264/ MJPEG |
|
Resolution |
1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) /
CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
|
Third Stream |
720P(1-13/4fps) |
|
Bit Rate |
H.264: 32K ~ 10Mbps |
|
Corridor Mode |
Support |
|
Audio |
|
Compression |
N/A |
|
Interface |
N/A |
|
Smart Function |
|
Smart detection |
Tripwire |
|
Intrusion |
|
Scene change |
|
Face detect |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
Compatibility |
ONVIF,PSIA,CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
PIR Sensor Range |
N/A |
|
General |
|
Power Supply |
DC12V, PoE (802.3af) |
|
Power Consumption |
Max 5W |
|
Working Environment |
-40°C~+60°C, Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
N/A |
|

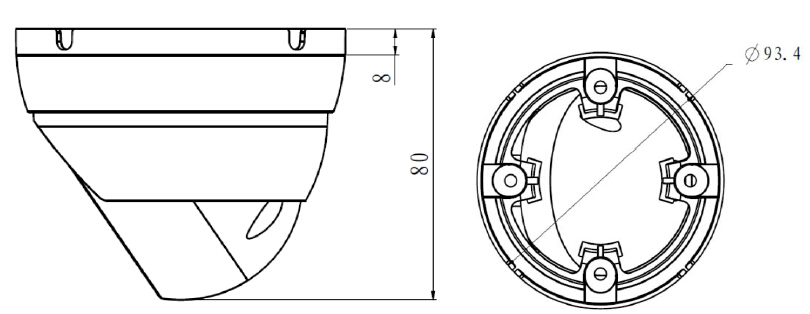

Dimensions |
Φ93.4mm×80mm |
|
Weight |
0.3Kg(0.42Kg with packaging) |  |
