Features
>1/3” 1.3Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>25/30fps@1.3M(1280×960)
>Smart Detection supported
>WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>2.7mm ~12mm motorized lens
>2/1 Alarm in/out, 1/1 audio in/out
>Max. IR LEDs Length 50m
>Micro SD memory, IP67, PoE
Specifications
|

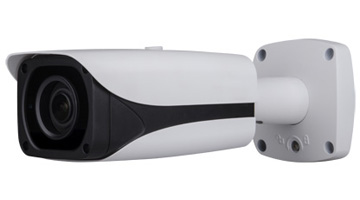

Model |
IPC-HFW5121E-Z |
|
Camera |
|
Image Sensor |
1/3” 1.3Megapixel progressive scan CMOS |
|
Effective Pixels |
1280(H) x 960(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/100000s |
|
Min. Illumination |
0.01Lux/F1.4(Color); 0Lux/F1.4(IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
1 port |
|
Camera Features |
|
Max. IR LEDs Length |
50m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / WDR(120dB) |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
2.7mm~12mm |
|
Max Aperture |
F1.4 |
|
Focus Control |
Motorized |
|
Angle of View |
H: 90°~29° |
|
Lens Type |
Motorized/ Auto Iris(DC) |
|
Mount Type |
|
|
Video |
|
Compression |
H.264/H.264H/H.264B/MJPEG |
|
Resolution |
1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/
CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1.3M/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Third Stream |
720P(1~25/30fps) |
|
Bit Rate |
H.264: 16K ~ 10Mbps |
|
Corridor Mode |
Support |
|
Audio |
|
Compression |
G.711a/ G.711u/ AAC |
|
Interface |
1/1 channel In/Out |
|
Smart Function(Optional) |
|
Smart detection |
Tripwire |
|
Intrusion |
|
Abandoned/Missing |
|
Scene Change |
|
Audio detect |
|
Face detect |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
ONVIF |
ONVIF,PSIA,CGI |
|
Max. User Access |
20users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 128GB |
|
RS485 |
N/A |
|
Alarm |
2/1 channel In/Out |
|
|
N/A |
|
General |
|
Power Supply |
DC12V, PoE (802.3af) |
|
Power Consumption |
<11.5W (with IR on, motorized lens working) |
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|
Ingress Protection |
IP67 |
|
|
N/A |
|

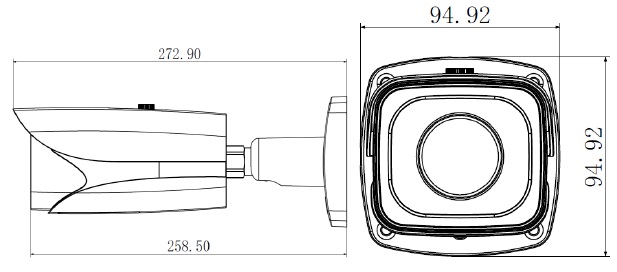

Dimensions |
272.9 mm × 94.9mm× 94.9mm |
|
Weight |
1.1kg |  |
