Features
>1/1.9" 2 Megapixel progressive scan Exmor CMOS
>Support H.264,MJPEG dual codec
>Smart triple streams supported
>Max 50/60ps@1080P(1920x1080)
>Ultra WDR (Wide Dynamic Range) up to 120db
>Ultra 3D DNR, Excellent performance under low illumination
>Ultra Defog, ROI, EIS
>Smart detection
>Intelligent Function
>Auto back focus(ABF)
>Micro SD memory, PoE
Specifications
|
Model |
IPC-HF8281EP |
IPC-HF8281EN |
|
Camera |
|
Image Sensor |
1/1.9” 2Megapixel progressive scan Exmor CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000s |
Auto/Manual, 1/4~1/10000s |
|
Min. Illumination |
0. 002Lux/F1.2 (Color), 0.0002Lux/F1.2(B/W) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
1 channel BNC（1.0Vp-p，75Ω） |
|
Camera Features |
|
Max. IR LEDs Length |
N/A |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
BLC / HLC / WDR(120dB) |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
EIS |
Support |
|
Ultra Defog |
Support |
|
Smart focus |
ABF |
|
Lens |
|
Mount Type |
C/CS |
|
Video |
|
Compression |
H.264/MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×
288) |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 50/60fps) |
|
Sub Stream |
D1/CIF(1 ~ 50/60fps) |
|
Third Stream |
1080P/720P(1 ~ 50/60fps) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps |
|
ROI |
Up to 4 areas |
|
Audio |
|
Compression |
G.711a / G.711u |
|
Interface |
1/1 channel In/Out |
|
Smart Function |
|
Smart detection |
Tripwire |
|
Intrusion |
|
Scene change |
|
Missing/Abandoned |
|
Audio detect |
|
Face detect |
|
Intelligent function |
People counting |
|
Heat map |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
Compatibility |
ONVIF ,PSIA,CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
1 |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
DC12V/AC24V, PoE (802.3af) |
|
Power Consumption |
Max 10W (ABF&ICR on) |
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|
Ingress Protection |
N/A |
|

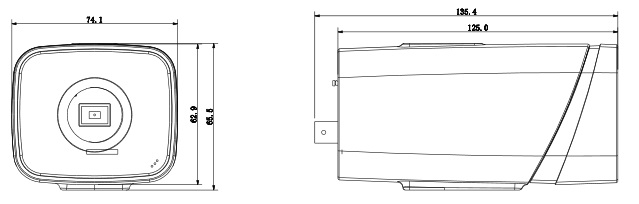

Dimensions |
74.1mm×65.5mm×135.4mm |
|
Weight |
0.3Kg |  |
