Features
>1/1.9" 2 Megapixel progressive scan CMOS
>Support H.264,MJPEG dual codec
>Smart triple streams supported
>Max 50/60fps@1080P
>Starlight: 0. 005Lux/F1.65 (Color)
>Ultra WDR (Wide Dynamic Range) up to 120dB
>Ultra 3D DNR
>Ultra Defog, ROI, EIS
>Smart detection
>Intelligent Function
>4~8mm varifacal motorized lens
Specifications
|
Model |
IPC-HFW8281EP-Z |
IPC-HFW8281EN-Z |
|
Camera |
|
Image Sensor |
1/1.9” 2Megapixel CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/10000s |
Auto/Manual, 1/4~1/10000s |
|
Min. Illumination |
0. 005Lux/F1.65 (Color),0Lux/F1.65(IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
1 port |
|
Camera Features |
|
Max. IR LEDs Length |
50m |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
BLC / HLC / WDR(120 dB) |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
EIS |
Support |
|
Ultra Defog |
Support |
|
Lens |
|
Focal Length |
4~8mm motorized |
|
Max Aperture |
F1.65 |
|
Focus Control |
Auto |
|
Angle of View |
H:90°(Wide)~58°(Tele) |
|
Lens Type |
Motorized /Auto Iris(DC) |
|
Mount Type |
Board-in type |
|
Video |
|
Compression |
H.264/H.264B/H.264H/MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/
D1(704×576)/CIF(352×288) |
1080P(1920×1080)/720P(1280×720)/
D1(704×480)/CIF(352×240) |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 50/60fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Third Stream |
1080P/720P/D1(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps |
|
ROI |
Up to 4 areas |
|
Audio |
|
Compression |
G.711a/G.711u |
|
Interface |
1/1 channel In/Out |
|
Smart Function |
|
Smart detection |
Tripwire |
|
Intrusion |
|
Scene change |
|
Missing/Abandoned |
|
Audio detect |
|
Defocus detect |
|
Face detect |
|
Intelligent function |
People counting |
|
Heat map |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP,
SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,
IP Filter, QoS, Bonjour |
|
Compatibility |
ONVIF, PSIA, CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 128GB |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
DC12V(AC24V optional), PoE (802.3af) |
|
Power Consumption |
<12.5W |
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|
Ingress Protection |
IP66 |
|

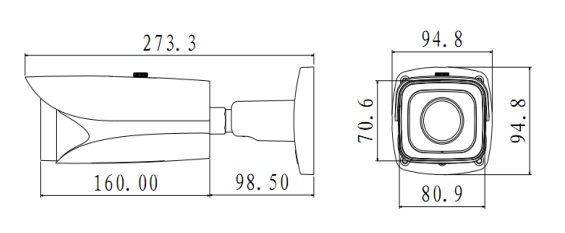

Dimensions |
273.30mm × 94.8mm× 94.8mm |
|
Weight |
1.25kg |  |
