Features
>1/3” 1.3Megapixel progressive scan CMOS
>Max 25/30fps@1.3MP（1280x960）
>Day/Night(Electronic), 3DNR, AWB,AGC,BLC
>Smart detection:
Face detection
Tripwire detection
Intrusion detection
Scene change detection
>3.6mm fixed lens
>Micro SD memory, PoE
Specifications
|
Model |
IPC-HUM8101P |
IPC-HUM8101N |
|
Camera |
|
Image Sensor |
1/3” 1.3Megapixel progressive scan CMOS |
|
Effective Pixels |
1280(H)x960(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
Auto/Manual, 1/4~1/100000s |
|
Min. Illumination |
0. 01Lux/F2.8 (Color), 0.001Lux/F2.8(B/W) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features |
|
Max. IR LEDs Length |
N/A |
|
Day/Night |
Auto(Electronic)/Color/B/W |
|
Backlight Compensation |
BLC / HLC/WDR(100dB) |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm |
|
Max Aperture |
F2.8 |
|
Focus Control |
Manual |
|
Angle of View |
77° |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264/MJPEG |
|
Resolution |
1.3M(1280×960)/720P(1280×720)/D1(704×576)/CIF(352× 288) |
|
Frame Rate |
Main Stream |
1.3M/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Third Stream |
720P/ D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 48K ~ 8192Kbps |
|
Audio |
|
Compression |
G.711a / G.711u/PCM |
|
Interface |
1/1 channel In/Out |
|
Smart Function |
|
Smart detection |
Tripwire |
|
Intrusion |
|
Scene change |
|
Missing/Abandoned |
|
Audio detect |
|
Face detect |
|
Network |
|
Ethernet |
RJ-45 (10/100/1000Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
Compatibility |
ONVIF, PSIA,CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
N/A |
|
Alarm |
1/1 channel In/Out |
|
General |
|
Power Supply |
DC12V, PoE (802.3af) |
|
Power Consumption |
Max 7W |
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|
Ingress Protection |
N/A |
|

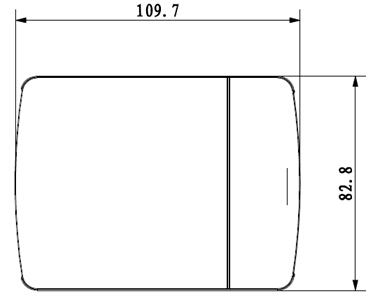

Dimensions |
109.7mm×82.8mm×24.0mm |
|
Weight |
0.46Kg |
|
