Features
>1/2.8" 3 Megapixel progressive scan CMOS
>Support H.265/H.264/MJPEG dual codec
>Smart triple streams supported
>Max 25/30fps@3MP(2048x1536)
>Ultra WDR up to 140dB
>Ultra 3D DNR
>Ultra Defog, ROI, EIS
>Smart detection
>Intelligent Function
>2.8 ~12mm varifocal motorized lens
>Max. IR LEDs length 50m
>Micro SD memory, IP66, IK10, PoE
Specifications
|
Model |
IPC-HDBW8331E-Z |
|
Camera |
|
Image Sensor |
1/2.8” 3Megapixel CMOS |
|
Effective Pixels |
2048(H)x1536(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/100000s |
|
Min. Illumination |
0. 005Lux/F1.4(Color), 0Lux/F1.4(IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
1 port |
|
Camera Features |
|
Max. IR LEDs Length |
50m |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
BLC / HLC / WDR (140dB) |
|
White Balance |
Auto/Sunny/Night/Outdoor/Customized |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
EIS |
Support |
|
Ultra Defog |
Support |
|
Lens |
|
Focal Length |
2.7 -12mm motorized |
|
Max Aperture |
F1.4 |
|
Focus Control |
Auto |
|
Angle of View |
H: 87°~31° |
|
Lens Type |
Motorized/Auto Iris(DC) |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.265/H.264 / MJPEG |
|
Resolution |
3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288) |
|
Frame Rate |
Main Stream |
3M/1080P/720P(1~25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Third Stream |
1080P/720P/D1(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 40K ~ 10Mbps |
|
ROI |
Up to 4 areas |
|
Audio |
|
Compression |
G.711a / G.711u/AAC |
|
Interface |
1/1 channel In/Out |
|
Smart Function(Optional) |
|
Smart detection |
Tripwire |
|
Intrusion |
|
Scene change |
|
Missing/Abandoned |
|
Audio detect |
|
Face detect |
|
Intelligent function |
People counting |
|
|
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
|
ONVIF, PSIA, CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 128GB |
|
RS485 |
N/A |
|
Alarm |
2/1 channel In/Out |
|
|
N/A |
|
General |
|
Power Supply |
DC12V/AC24V, PoE(802.3af) |
|
Power Consumption |
Max 12W |
|
Working Environment |
-30°C~+60°C , Less than 90%RH |
|
Ingress Protection |
IP67 |
|
|
IK10 |
|

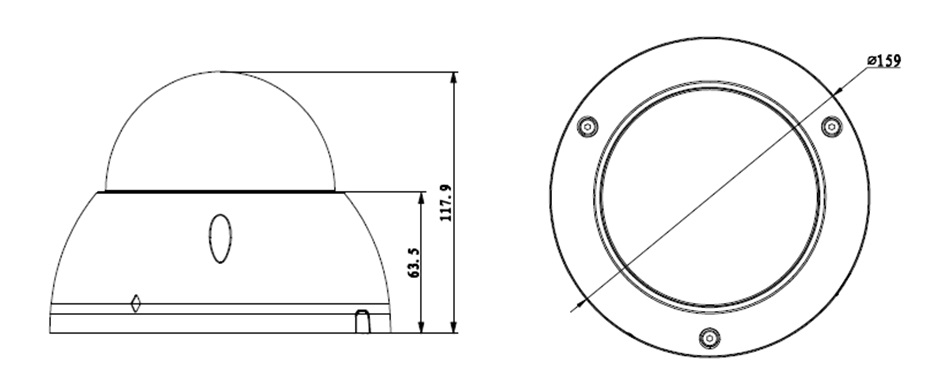

Dimensions |
Φ159mm×117.9mm |
|
Weight |
0.8kg |  |
