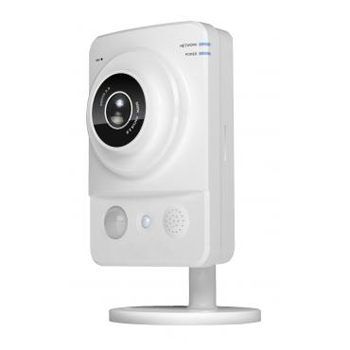

Overview
• 1/3” 1.3Mp Aptina CMOS
• H.264/MJPEG & dual-stream encoding
• Max 15fps@1.3M(1280×960),25/30fps@720p
• Lens: 3.6mm
• White LEDs: 10m
• DC12V, PoE
• Material: Plastic(front)+Metal(back)
• Micro SD memory (K100A&K100W only), Wi-Fi (K100W only)
Featires
> 1/3” 1.3Megapixel Aptina CMOS
> H.264 & MJPEG dual-stream encoding
> Max 15fps@1.3M (1280×960)/25/30fps@720P(1280×720)
> DWDR, Day/Night, 2DNR, Auto iris, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens
> White LEDs length 10m
> PIR sensor range 6m
> Micro SD memory (K100A&K100W only), PoE (K100&K100A only), Wi-Fi (K100W only)
Technical Specifications
|
Model |
IPC-K100 |
IPC-K100A |
IPC-K100W |
|
Camera |
|
Image Sensor |
1/3” 1.3Megapixel Aptina CMOS |
|
Effective Pixels |
1280(H)x960(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3~1/10000 (PAL)
Auto/Manual 1/4~1/10000(NTSC) |
|
Min. Illumination |
0.1lux/F1.8(color), |
|
S/N Ratio |
>50dB |
|
Camera Features |
|
Max. LEDs Length |
10m |
|
Day/Night |
Auto(Electronic) / Color / B/W |
|
White Balance |
BLC / HLC / DWDR |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
2D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm |
|
Max Aperture |
F1.8 |
|
Angle of View |
70° |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264/MJPEG |
|
Resolution |
1.3M(1280x960)/720P(1280x720)/D1/CIF |
|
Frame Rate |
Main Stream |
1.3M(1~15fps)/720P/D1(1~25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 32K ~ 8096Kbps,MJPEG:32K~12288Kbps |
|
Audio |
|
Compression |
N/A |
G.711a / G.711u (64kbps)/ PCM(128kbps) |
|
Interface |
N/A |
Built-in Mic, Built-in speaker |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
RJ-45(10/100Base-T) / Wi-Fi(802.11b/g) |
|
Protocol |
IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
ONVIF |
ONVIF Ver. 2.0 |
|
Max. User Access |
10 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
N/A |
Micro SD, Max 32GB |
|
PIR Sensor Range |
Up to 6m |
|
Alarm |
N/A |
1/1 channel In/Out |
|
General |
|
Power Supply |
DC12V,PoE(802.3af) |
DC12V |
|
Power Consumption |
<4W |
|
Working Environment |
-10°C~+50°C, 10%~90% |
|

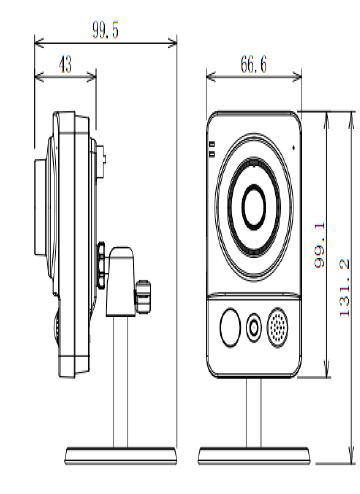

Dimensions(W×D×H) |
66.6×43mm×131.2 |
|
Weight |
0.35kg (0.4kg with bracket) |  |
