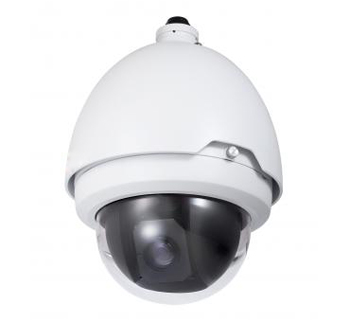

1.3Mp HD Network PTZ Dome Camera
|
|
| |
Overview
• 1/3” 1.3Mp Exmor CMOS
• Max 25/30fps @1.3M/720P
• 4.5~90mm 20x optical zoom
• H.264/MJPEG & Dual-stream encoding
• Max 300 °/s pan speed
• DWDR, D&N(ICR), Ultra DNR
• 1/1ch audio in/out, 2/1ch alarm in/out
• IP 66, IK 10 optional, -40~60°C, Micro SD card
Featires
• 20x optical zoom • H.264 & MJPEG dual-stream encoding • Max. 25/30fps@1.3M(1280x960) & 720P resolution • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS • Max 300°/s pan speed, 360° endless pan rotation • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern • Built-in 2/1 alarm in/out • Support intelligent 3D positioning with DH-SD protocol • Micro SD memory, IP66
Technical Specifications
|
Model |
SD63120S-HN |
|
Camera |
|
Image Sensor |
1/3” Exmor CMOS |
|
Effective Pixels |
1280(H) x 960(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Min. Illumination |
Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4 |
|
S/N Ratio |
More than 50dB |
|
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
Ultra DNR (2D/3D) |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens |
|
Focal Length |
4.7mm~94mm(20x Optical zoom) |
|
Max Aperture |
F1.4 ~ F2.6 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 54.1° ~ 3.2° |
|
Close Focus Distance |
100mm~ 1000mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s |
|
Preset Speed |
Pan: 300° /s; Tilt: 200° /s |
|
Preset |
80(DH-SD), 255(Pelco-P/D) |
|
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
|
Time Task |
Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
Video |
|
Compression |
H.264 / MJPEG |
|
Resolution |
1.3M(1280×960) / 720P(1280×720) / D1(704×576/ 704×480) /CIF
(352×288/352×240) |
|
Frame Rate |
Main Stream |
1.3M/720P/D1(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps |
|
Audio |
|
Compression |
G.711a / G.711u(32kbps)/ PCM(128kbps) |
|
Interface |
1/1 channel In/Out |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
ONVIF |
ONVIF Profile S |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
1 |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
AC 24V/2.2A (±10%) |
|
Power Consumption |
9.5W, 21W (Heater on) |
|
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
4000V anti-lightning surge |
|

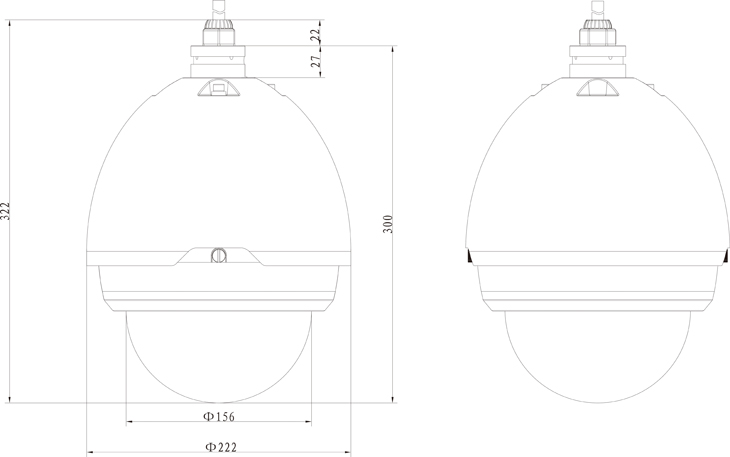

Dimensions |
Φ211.9(mm) x 322.1 (mm) |
|
Weight |
6.8kg |  |
| |
|
|
|
