Features
> 30x optical zoom
> H.264 & MJPEG dual-stream encoding
> Enhanced Chipset Advanced Surveillance Camera
> Max. 25/30fps@1080P(1920 x1080) & 720P resolution
> DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
> Max 240°/s pan speed, 360° endless pan rotation
> Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Built-in 2/1 alarm in/out, Micro SD memory, IP66
> Support intelligent 3D positioning with DH-SD protocol
> IR Distance up to 100m
Specifications
|
Model |
SD6C230E-HN |
|
Camera |
|
Image Sensor |
1/2.8” Exmor CMOS |
|
Effective Pixels |
1944(H) x 1092(V) |
|
Scanning System |
Progressive |
|
Min. Illumination |
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 |
|
S/N Ratio |
More than 50dB |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
|
Gain Control |
Auto / Manual |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Noise Reduction |
Ultra DNR (2D/3D) |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens |
|
Focal Length |
4.3mm~129mm(30x Optical zoom) |
|
Max Aperture |
F1.6 ~ F5 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 65.1° ~ 2.34° |
|
Close Focus Distance |
10mm~ 1500mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s |
|
Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
|
Preset |
80(DH-SD), 255(Pelco-P/D) |
|
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is
no command in the specified period |
|
Time Task |
Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
IR Distance |
100m (2 near IR LED+ 4 far IR LED) |
|
Video |
|
Compression |
H.264 / MJPEG |
|
Resolution |
1080P(1920×1080) / 720P(1280×720) / D1(704×576/
704×480) /CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP,
IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS,
FTP, IP Filter, QoS, Bonjour, 802.1x |
|
ONVIF |
ONVIF Profile S |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Audio |
|
Compression |
G.711a / G.711u(32kbps)/ PCM(128kbps) |
|
Interface |
1/1 channel In/Out |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
1 |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
AC 24V/2.2A (±10%) |
|
Power Consumption |
10.5W, 26W (IR on, Heater on) |
|
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
|
Ingress Protection |
IP66 |
|

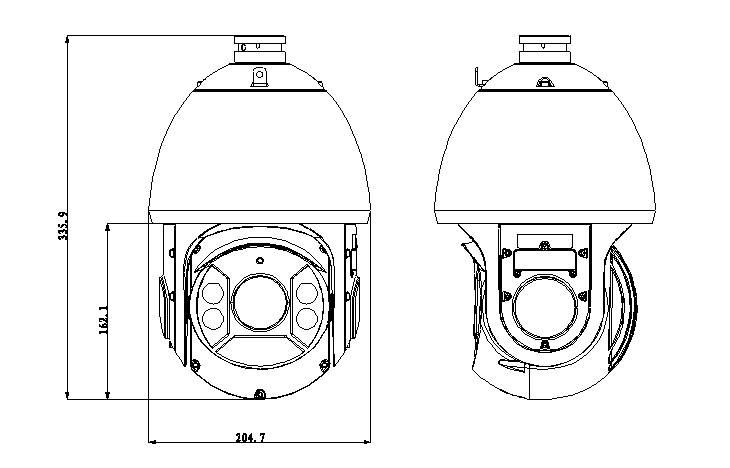

Dimensions |
Φ204.7(mm) x 359.9(mm) |
|
Weight |
7.8kg |  |
