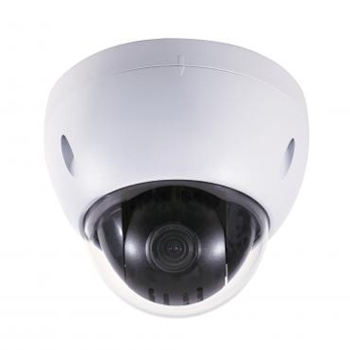

Overview
• 1/3” 2Mp Exmor CMOS
• Max 25/30fps@1080P
• 3~9mm 3x optical zoom
• H.264/MJPEG & Dual-stream encoding
• Max 80°/s Pan/Tilt speed, 0°~350° pan rotation
• DWDR, D&N(ICR), DNR(2D&3D)
• 1/1ch audio in/out, 2/1ch alarm in/out
• Micro SD card, PoE
• IP 66, IK 10, -10~55°C
Featires
> 3.0mm ~ 9.0mm(3x)optical zoom
> H.264 & MJPEG dual-stream encoding
> Max 25/30fps@1080p resolution
> WDR(DWDR), Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Max 80 °/s P&T speed, 0° ~350°pan rotation
> Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 2/1 alarm in/out
> Support intelligent 3D positioning with DH-SD protocol
> Micro SD memory, IP66, IK10 optional, PoE
Technical Specifications
|
Model |
SD3282D-GN |
|
Camera |
|
Image Sensor |
1/3” Exmor CMOS |
|
Effective Pixels |
1944(H) x 1092(V), 2 Megapixels |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 - 1/10,000s |
|
Min. Illumination |
Color: 0.05 lux@F1.2, B/W: 0.0005 lux@F1.2 |
|
S/N Ratio |
More than 50dB |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
2D / 3D |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens |
|
Focal Length |
3.0mm ~ 9.0mm(3x Optical zoom) |
|
Max Aperture |
F1.2 ~ F2.1 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 93° ~ 31.7° |
|
Close Focus Distance |
30mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 355°; Tilt: -2° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~ 80°/s; Tilt: 0.1° ~80°/s |
|
Preset Speed |
Pan: 80°/s; Tilt: 80°/s |
|
Preset |
80(DH-SD), 255(Pelco-P/D) |
|
PTZ Mode |
5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
|
Time Task |
Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
Video |
|
Compression |
H.264 / MJPEG |
|
Resolution |
1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
|
Audio |
|
Compression |
G.711a / G.711u (32kbps) / PCM (128kbps) |
|
Interface |
1/1 channel In/Out |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
ONVIF |
ONVIF Ver. 2.0 conformance |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 32GB |
|
RS485 |
1 |
|
Alarm |
2/1 channel In/Out |
|
General |
|
Power Supply |
DC12V, PoE(802.3af) |
|
Power Consumption |
15W |
|
Working Environment |
-10ºC ~ 55ºC / Less than 90% RH |
|
Protection Level |
IP66, IK10 |
|

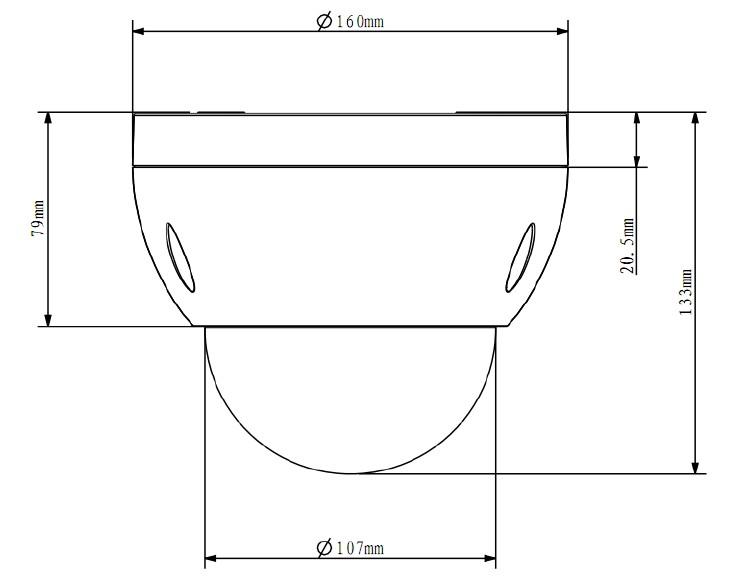

Dimensions |
Φ160(mm) x 132(mm) |
|
Weight |
1.33kg |  |
