Features
> 1/4” 1Megapixel progressive scan CMOS
> H.264 & MJPEG dual-stream encoding
> Max 25/30fps@720P(1280×720)
> DWDR, Day/Night, 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (2.8mm,6mm optional)
> Wi-Fi support
> DC12V
Specifications
|
Model |
IPC-HD1000C-W |
|
Camera |
|
Image Sensor |
1/4” 1Megapixel progressive scan CMOS |
|
Effective Pixels |
1280(H)x720(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3（4）~1/10000 |
|
Min. Illumination |
0.1Lux/F1.8(color), 0Lux/F1.8(IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features |
|
Max. IR LEDs Length |
N/A |
|
Day/Night |
Auto(Electronic) / Color / B/W |
|
Backlight Compensation |
BLC /HLC /DWDR |
|
White Balance |
Auto |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm (2.8mm,6mm optional) |
|
Max Aperture |
F1.8(F2.0/F1.9) |
|
Focus Control |
Manual |
|
Angle of View |
H:70°(89°/46.5°) |
|
Lens Type |
Fixed |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264 / MJPEG |
|
Resolution |
720P(1280×720)/ D1(704×576/704×480)/ CIF(352×288/352×240)/ |
|
Frame Rate |
Main Stream |
720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 56K ~ 8192Kbps |
|
Audio |
|
Compression |
N/A |
|
Interface |
N/A |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
Wi-Fi(802.11b/g/n) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP,
IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS,
FTP, IP Filter, QoS, Bonjour |
|
ONVIF |
ONVIF ,CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
PIR Sensor Range |
N/A |
|
General |
|
Power Supply |
DC12V |
|
Power Consumption |
<4W |
|
Working Environment |
-30°C~+50°C, Less than 95%RH |
|
Ingress Protection |
N/A |
|
Vandal Resistance |
N/A |
|

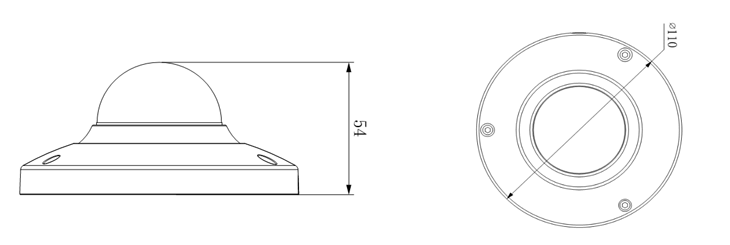

Dimensions |
Φ110×54mm |
|
Weight |
0.25kg |  |
