Features
>1/3”3Megapixel progressive scan CMOS
>H.264 & MJPEG dual-stream encoding
>Max 25/30fps@1080P(1920×1080)
>DWDR, Day/Night(ICR), AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (6mm optional)
>Max. IR LEDs Length 30m
>Wi-Fi support
>IP66，DC12V
Specifications
|
Model |
IPC-HFW1200S-W |
|
Camera |
|
Image Sensor |
1/3”3Megapixel progressive scan CMOS |
|
Effective Pixels |
2048(H)x1536(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/10000 |
|
Min. Illumination |
Color: 0. 1Lux/F1.6; 0Lux/F1.6 (IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features |
|
Max. IR LEDs Length |
30m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC /HLC /DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
2D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm (6mm optional) |
|
Max Aperture |
F1.8(F1.6) |
|
Focus Control |
Manual |
|
Angle of View |
H: 72°(44°) |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264H/H.264B/H.264/ MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264H: 16K ~ 8192Kbps |
|
Audio |
|
Compression |
N/A |
|
Interface |
N/A |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
Wi-Fi(IEEE802.11b/g/n) |
|
Wi-Fi Range |
50m(open field) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
|
Compatibility |
ONVIF, CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
PIR Sensor Range |
N/A |
|
General |
|
Power Supply |
DC12V |
|
Power Consumption |
<7W |
|
Working Environment |
-30°C~+50°C, Less than 95%RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
N/A |
|
Dimensions |

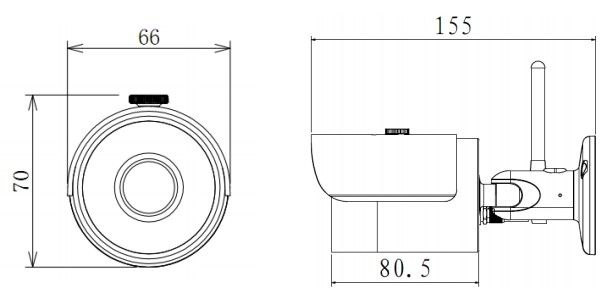

Φ70mm×66mm×155mm |
|
Weight |
0.42Kg |  |
