Features
>1/3” 1.3Megapixel progressive scan CMOS
>Support H.264&MJPEG dual codec
>25/30fps@1.3M(1280×960)
>Smart Detection supported
>DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm, 6mm optional)
>Built-in Mic
>Max. IR LEDs Length 20m
>Micro SD memory, IP66
>Wi-Fi support
Specifications
|
|
IPC-HDPW4120F-W |
|
Camera |
|
Image Sensor |
1/3” 1.3Megapixel progressive scan CMOS |
|
Effective Pixels |
1280(H) ´ 960(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/100000s |
|
Min. Illumination |
0.01Lux/F2.0(Color),0Lux/F2.0 (IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features |
|
Max. IR LEDs Length |
20m |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto/Sunny/Night/Outdoor/Customized |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm(2.8mm,6mm optional) |
|
Max Aperture |
F2.0(F1.8/F2.0) |
|
Focus Control |
Manual |
|
Angle of View |
74°/86°/47° |
|
Lens Type |
Fixed lens |
|
Mount Type |
|
|
Video |
|
Compression |
H.264/H.264B/H.264H/ MJPEG |
|
Resolution |
1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480)
/ CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1.3M/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Third Stream |
720P(1-14/7fps) |
|
Bit Rate |
H.264: 32K ~ 10Mbps |
|
|
Support |
|
Audio |
|
Compression |
G.711a/ G.711u/ AAC |
|
Interface |
Built-in Mic |
|
Smart Function(Optional) |
|
Smart detection |
Tripwire |
|
Intrusion |
|
Abandoned/Missing |
|
Scene Change |
|
Audio detect |
|
Face detect |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
Wi-Fi(IEEE802.11b/g/n)
50m(open field) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
Compatibility |
ONVIF,PSIA,CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD Max 128GB |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
|
N/A |
|
General |
|
Power Supply |
DC12V |
|
Power Consumption |
<5W |
|
Working Environment |
-30°C~+50°C, Less than 95% RH |
|
Ingress Protection |
IP66 |
|
|
N/A |
|

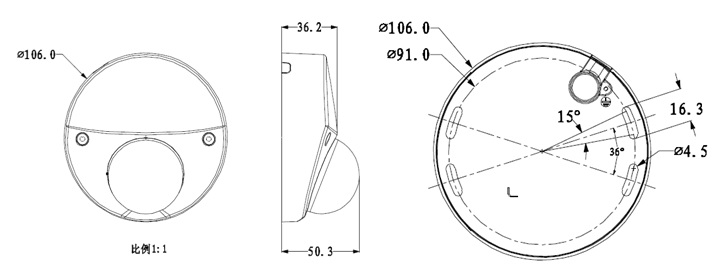

Dimensions |
Φ106mm×50.3mm |
|
Weight |
0.35kg |  |
