Features
>1/3” 3Megapixel progressive scan Aptina CMOS
>H.264 & MJPEG dual-stream encoding
>Max 20fps@3M(2048×1536), 25/30fps@1080P
>Day/Night(Electronic), 3DNR, AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm,6mm optional)
>Micro SD memory, IK10, PoE
Specifications
|
Model |
IPC-HDB4300C-M |
|
Camera |
|
Image Sensor |
1/3” 3Megapixel progressive scan CMOS |
|
Effective Pixels |
2048(H)x1536(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3(4)~1/10000 |
|
Min. Illumination |
0.1lux/F1.8(color) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features |
|
Max. IR LEDs Length |
N/A |
|
Day/Night |
Auto(Electronic)/Color/B/W |
|
Backlight Compensation |
BLC/HLC/DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens |
|
Focal Length |
3.6mm (2.8mm,6mm optional) |
|
Max Aperture |
F1.8(F2.0/F1.6) |
|
Focus Control |
Manual |
|
Angle of View |
H:72.5°(90°/44°) |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video |
|
Compression |
H.264/ MJPEG |
|
Resolution |
3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
3M(1~20fps)/1080P/720P(1 ~ 25/30fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps |
|
Audio |
|
Compression |
G.711a/G.711u/PCM |
|
Interface |
Built-in Mic |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
N/A |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
Compatibility |
ONVIF,PSIA,CGI |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
PIR Sensor Range |
N/A |
|
General |
|
Power Supply |
DC12V |
|
Power Consumption |
Max 3W |
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|
Ingress Protection |
N/A |
|
Vandal Resistance |
IK10 |
|

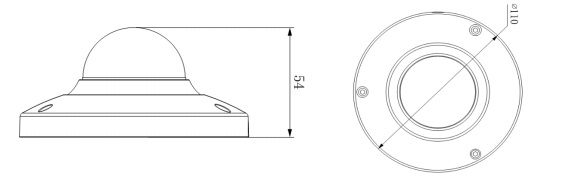

Dimensions |
Φ110mm×54mm |
|
Weight |
0.25kg |  |
