Features
>3.0mm ~ 9.0mm(3x)optical zoom
>H.264 & MJPEG dual-stream encoding
>Max 25/30fps@1080p resolution
>DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240 °/s pan speed, 0° ~360° endless pan rotation
>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66, IK10, PoE
Specifications
|
Model |
SD32203S-HN |
|
Camera |
|
Image Sensor |
1/2.8” Exmor CMOS |
|
Effective Pixels |
1944(H) x 1092(V), 2 Megapixels |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 - 1/30,000s |
|
Min. Illumination |
Color: 0.05 lux@F1.6, B/W: 0.005 lux@F1.6 |
|
S/N Ratio |
More than 50dB |
|
Camera Features |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
2D / 3D |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens |
|
Focal Length |
3.0mm ~ 9.0mm(3x Optical zoom) |
|
Max Aperture |
F1.6 ~ F2.7 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 116.5° ~ 34.5° |
|
Close Focus Distance |
1000mm~1500mm |
|
PTZ |
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~ 240°/s; Tilt: 0.1° ~160°/s |
|
Preset Speed |
Pan: 240°/s; Tilt: 160°/s |
|
Preset |
80(DH-SD), 255(Pelco-P/D) |
|
PTZ Mode |
5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
|
Video |
|
Compression |
H.264 / MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P/D1(1 ~ 25/30fps), 720P(1~50/60fps) |
|
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
|
Audio |
|
Compression |
G.711a / G.711u (32kbps) / PCM (128kbps) |
|
Interface |
1/1 channel In/Out |
|
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,
RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
ONVIF |
ONVIF Profile S |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface |
|
Memory Slot |
Micro SD, Max 64GB |
|
General |
|
Power Supply |
DC12V, PoE(802.3af) |
|
Power Consumption |
10W |
|
Working Environment |
-20ºC ~ 60ºC / Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
IK10 |
|

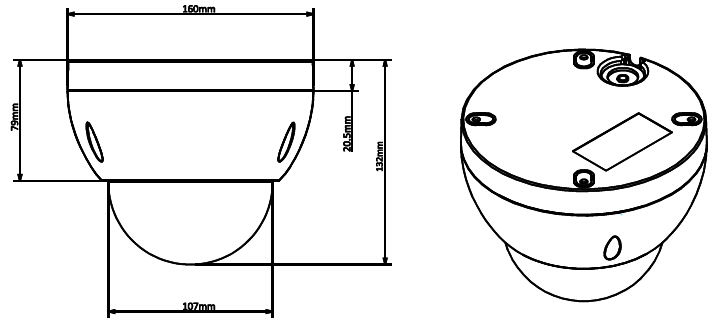

Dimensions |
Φ160(mm) x 132(mm) |
|
Weight |
1.33kg |  |
