Camera |
|
Image Sensor |
1/1.8" CMOS |
|
Max. Resolution |
2688 (H) × 1520 (V) |
|
ROM |
8 GB |
|
RAM |
4 GB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
Min. Illumination |
0.0006 lux@F1.6 (Color, 30 IRE)
0.0003 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on) |
|
S/N Ratio |
>56dB |
|
Illumination Distance |
120 m (393.70 ft) (IR LED) |
|
Illuminator On/Off Control |
Auto |
|
Illuminator Number |
4 (IR LED) |
|
Angle Adjustment |
Pan: 0-360°
Tilt: 0-90°
Rotation: 0-360° |
|
Lens |
|
Lens Type |
Motorized vari-focal |
|
Lens Mount |
Module |
|
Focal Length |
8 mm–32 mm |
|
Max. Aperture |
F1.6 |
|
Field of View |
H: 43°–15°; V: 24°–9°; D: 50°–17° |
|
Iris Control |
Auto |
|
Iris Control Type |
P-Iris |
|
Close Focus Distance |
1.5 m (4.92 ft) |
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
W |
147.3 m
(493.28 ft) |
58.9 m
(193.24 ft) |
29.5 m
(96.78 ft) |
14.7 m
(48.23 ft) |
|
|
T |
395 m
(1295.93 ft) |
158 m
(518.37 ft) |
79 m
(259.19 ft) |
39.5 m
(129.59 ft) |
|
Smart Event |
|
IVS |
Abandoned object; missing object |
|
Intelligence |
|
IVS (Perimeter Protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection, privacy protection |
|
Face Detection |
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; privacy protection |
|
Face Recognition |
There are two modes: General mode and counting mode.
General mode:
Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.
privacy protection
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures.
Counting mode:
Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. |
|
PPE Detection |
Triggers alarms when the detected object matches or does not match all of the configured attributes (workwear,hat,face mask,apron,gloves,shoe covers,boots,seatbelt,safety vest); privacy protection |
|
People Counting |
Tripwire people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management; privacy protection |
|
Heat Map |
Yes |
|
ANPR |
ANPR: ANPR, track, priority, snapshot.
Vehicle attributes: License plate, vehicle type, vehicle color.
Other attributes: Seat belt, smoking, calling.
Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. |
|
Parking Space Management |
Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles. |
|
Video Metadata |
Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling.
Generates flow statistics for people, motor vehicles and non-motor vehicles based on the direction, and exports reports.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella.
privacy protection. |
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Video |
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Main Stream: 2688 × 1520@(1–50/60 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Fourth stream: 1920 × 1080@(1–25/30 fps)
Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
|
Stream Capability |
5 streams |
|
Resolution |
4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 32 kbps–10240 kbps; H.264: 12 kbps–10240 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
140 dB |
|
Scene Self-adaptation (SSA) |
Yes |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Image Stabilization |
Electronic Image Stabilization (EIS) |
|
Smart Illumination |
Yes |
|
Defog |
Yes |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
|
Mirror |
Yes |
|
Privacy Masking |
8 areas |
|
Time-Division Exposure |
Yes |
|
Audio |
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
|
Alarm |
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; parking space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection |
|
Network |
|
Network Port |
RJ-45 (10/100/1000 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
|
User/Host |
20 (Total bandwidth: 340 M) |
|
Storage |
FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
|
Browser |
IE: IE11 and later; Chrome: Chrome 88.0.4324.190 and later; Firefox: Firefox 47.0.2 and later; |
|
Management Software |
SmartPSS Lite; DSS; DMSS |
|
Mobile Client |
iOS; Android |
|
Cyber Security |
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
|
Certification |
|
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; UL 50E NEMA Type 4X (optional) |
|
Port |
|
RS-485 |
1 (baud rate range:1200 bps–115200 bps) |
|
Audio Input |
1 channel (RCA port) |
|
Audio Output |
1 channel (RCA port) |
|
Alarm Input |
3 channels in: 5mA 3V–5V DC |
|
Alarm Output |
2 channels out: 1,000mA 30V DC/500mA 50V AC |
|
Analog Output |
1 channel (CVBS output: BNC) |
|
Power |
|
Power Supply |
12 VDC/24 VAC/PoE+ (802.3at)/ePoE |
|
Power Consumption |
Basic: 7.3 W (12 VDC); 10.2 W (24 VAC); 10.6 W (PoE)
Max. (ICR switch + IR intensity): 18.2 W (12 VDC); 24.2 W (24 VAC); 24.3 W (PoE)
Heating: 3 W (12 VDC); 4.6 W (24 VAC); 5.47 W (PoE) |
|
Environment |
|
Operating Temperature |
–40 °C to +65 °C (–40 °F to +149 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–40 °C to +65 °C (–40 °F to +149 °F) |
|
Storage Humidity |
10–95% |
|
Protection |
IP67; IK10; Anti-Corrosion Protection (optional) |
|
Structure |
|
Casing Material |
Metal + plastic |
|

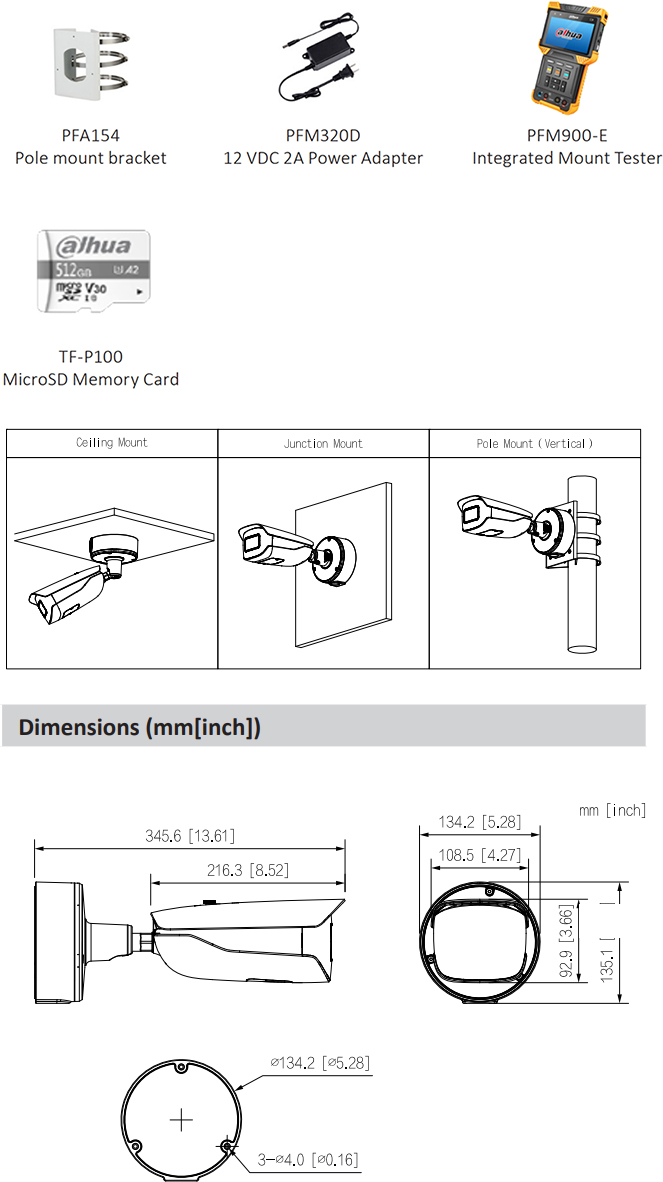

Product Dimensions |
345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H) |
|
Net Weight |
1.65 kg (3.64 lb) |
|
Gross Weight |
2.73 kg (6.02 lb) |
