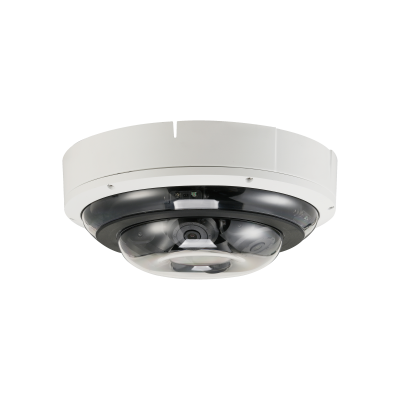

4 × 2 MP 4-Directional Panoramic Dome Network Camera
|
|
| |
> Four 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 dual-stream encoding
> 25/30fps@2M(1920×1080)
> Smart Detection supported
> WDR(140dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm~12mm motorized lens
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, PoE+
|
|
Camera |
|
Image Sensor |
Four 1/2.8” 2Megapixel progressive scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
RAM/ROM |
1024MB/128MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/100000s |
|
Minimum Illumination |
0.005Lux/F1.8( Color,1/3s,30IRE)
0.06Lux/1.8( Color,1/30s,30IRE)
0Lux/F1.8(IR on) |
|
S/N Ratio |
More than 50dB |
|
IR Distance |
Distance up to 30m (98ft) |
|
IR On/Off Control |
Auto/ Manual |
|
IR LEDs |
8 |
|
Lens |
|
Lens Type |
Motorized |
|
Mount Type |
Board-in |
|
Focal Length |
2.7~12mm motorized |
|
Max. Aperture |
F1.8 |
|
Angle of View |
H: 105° ~44°, V:54° ~25° |
|
Optical Zoom |
4x |
|
Focus Control |
Motorized |
|
Close Focus Distance |
0.2m(0.66ft) |
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
Wide |
45m(148ft) |
18m(59ft) |
9m(29.5ft) |
4.5m(14.8ft) |
|
|
Tele |
99m(325ft) |
40m(131ft) |
20m(66ft) |
10m(33ft) |
|
Pan/Tilt/Rotation |
|
Pan/Tilt/Rotation Range |
Pan:0˚~360˚; Tilt:0˚~80˚; Rotation:0˚~355˚ |
|
Intelligence |
|
Event Trigger |
Motion detection, Video tampering, Scene changing,
Network disconnection, Ip address conflict, Illegal
access, Storage anomaly |
|
IVS |
Tripwire, Intrusion |
|
Video |
|
Compression |
H.265/H.264/H.264B/H.264H/MJPEG(sub stream) |
|
Smart Codec |
Support H.265+/H.264+ |
|
Streaming Capability |
2 Streams |
|
Resolution |
1080P(1920×1080)/1.3M(1280x960)/ 720P(1280x720)/D1(704×576/704x480)/ CIF(352×288/352×240) |
|
Frame Rate |
Main Stream: 1080P(1~25/30fps) |
|
|
Sub Stream: D1(1~25/30fps) |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H.264: 32~8192Kbps
H.265: 12~6144Kbps |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / WDR(140dB) |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image Stabilization (EIS) |
N/A |
|
Smart IR |
N/A |
|
Defog |
N/A |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
|
Network |
|
|
Ethernet |
RJ-45 (100/1000Base-T) |
|
Protocol |
HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP |
|
Interoperability |
ONVIF Profile S&G, API |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users /20 Users |
|
Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 256GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, DMSS |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
|
Certifications |
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
1/1 channel In/Out |
|
RS485 |
1 port |
|
Alarm |
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12V |
|
Electrical |
|
|
Power Supply |
AC24V, PoE+(802.3at)(Class 4) |
|
Power Consumption |
AC 24V: 9.9W 31.2W(IR on)
PoE: 10.6W 23.8W(IR on) |
|
Environmental |
|
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Stroage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
IK10 |
|
Construction |
|
|
Casing |
Metal |
|

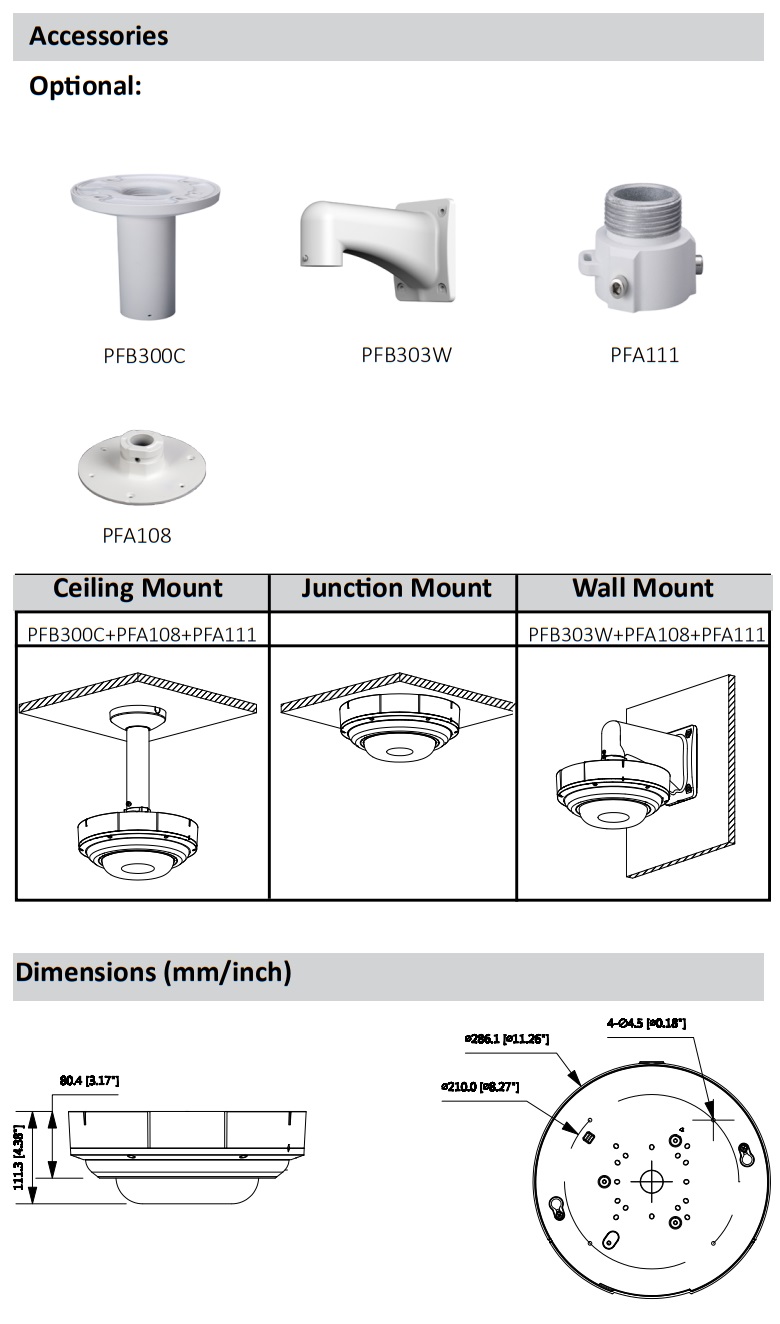

Dimensions |
286.1mm×111.3mm |
|
Net Weight |
2.7kg (5.95lb) |
|
Gross Weight |
3.6kg (7.94lb) |  |
|
|
|
|
